AXNP 65-S NADELLA

Brand - NADELLA
Item Number - AXNP 65-S NADELLA
Category - Linear Module

Principal Dimensions (Metric):

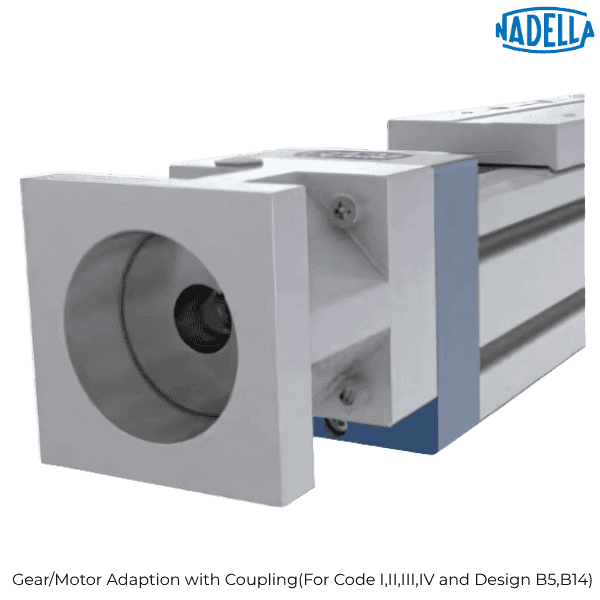

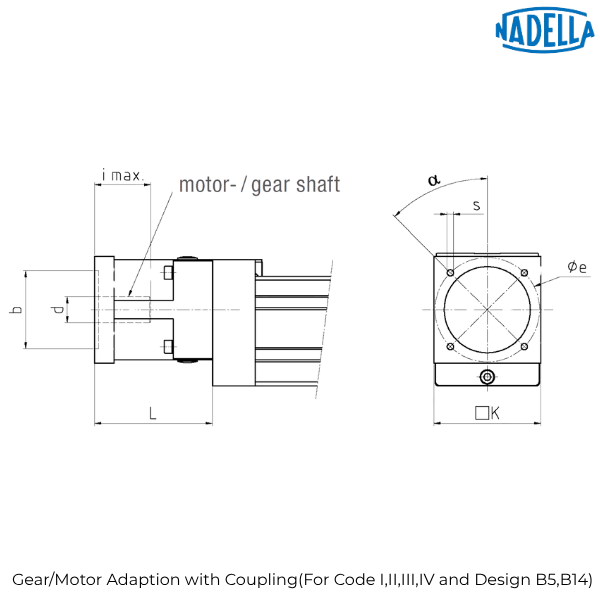

Gear / Motor Adaption with Coupling (Code I, Design B5):
Minimum Dimension (e) - 55 mm
Maximum Dimension (e) - 95 mm
Angle (α) - 0°
Dimension (S) - 4 x M6 x 15
Minimum Dimension (b) - 48 mm
Maximum Dimension (b) - 85 mm
Minimum Dimension (d) - 8 mm
Maximum Dimension (d) - 25 mm
Maximum Dimension (i) - 40 mm
Maximum Dimension (K) - 105 mm
Dimension (L) - 90 mm

Gear / Motor Adaption with Coupling (Code II, Design B5):
Minimum Dimension (e) - 60 mm
Maximum Dimension (e) - 120 mm
Angle (α) - 45°
Dimension (S) - 4 x M6 x 15
Minimum Dimension (b) - 48 mm
Maximum Dimension (b) - 100 mm
Minimum Dimension (d) - 8 mm
Maximum Dimension (d) - 25 mm
Maximum Dimension (i) - 40 mm
Maximum Dimension (K) - 105 mm
Dimension (L) - 90 mm

Gear / Motor Adaption with Coupling (Code III, Design B14):
Minimum Dimension (e) - 66 mm
Maximum Dimension (e) - 95 mm
Angle (α) - 0°
Dimension (S) - 4 x Ø 6.6
Minimum Dimension (b) - 48 mm
Maximum Dimension (b) - 85 mm
Minimum Dimension (d) - 8 mm
Maximum Dimension (d) - 25 mm
Maximum Dimension (i) - 40 mm
Maximum Dimension (K) - 105 mm
Dimension (L) - 90 mm

Gear / Motor Adaption with Coupling (Code IV, Design B14):
Minimum Dimension (e) - 66 mm
Maximum Dimension (e) - 120 mm
Angle (α) - 45°
Dimension (S) - 4 x Ø 6.6
Minimum Dimension (b) - 48 mm
Maximum Dimension (b) - 100 mm
Minimum Dimension (d) - 8 mm
Maximum Dimension (d) - 25 mm
Maximum Dimension (i) - 40 mm
Maximum Dimension (K) - 105 mm
Dimension (L) - 90 mm

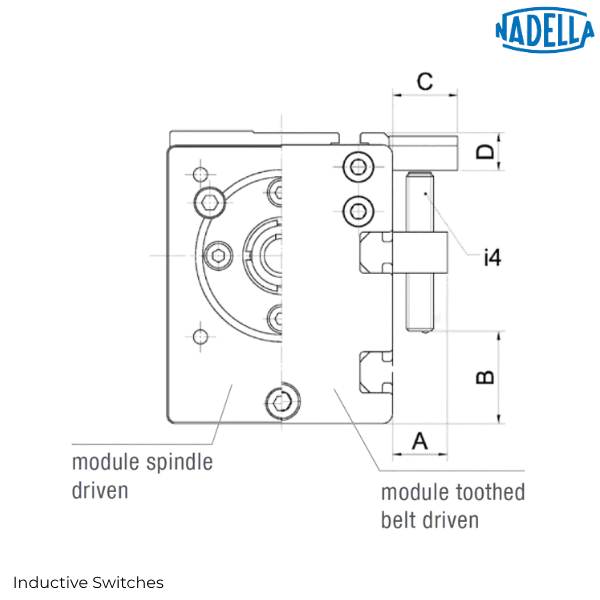

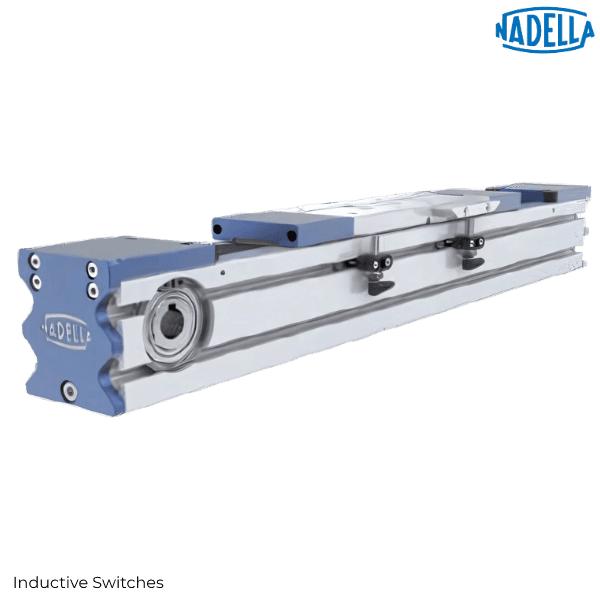

Inductive Switch:
Dimension (A) - 16 mm
Switch Type - i4
Dimension (B)* - 27 mm
Dimension (C) - 19 mm
Dimension (D) - 11 mm
Nut Slot - 6 St-
Dimension (s) - M4, M5, M6
Design - E / S
Dimension (L) - 17 mm
Dimension (L1)** - 5 mm, 5 mm, 5.5 mm
Dimension (TA) - 4 Nm
Maximum Tensile Force - 1750 N

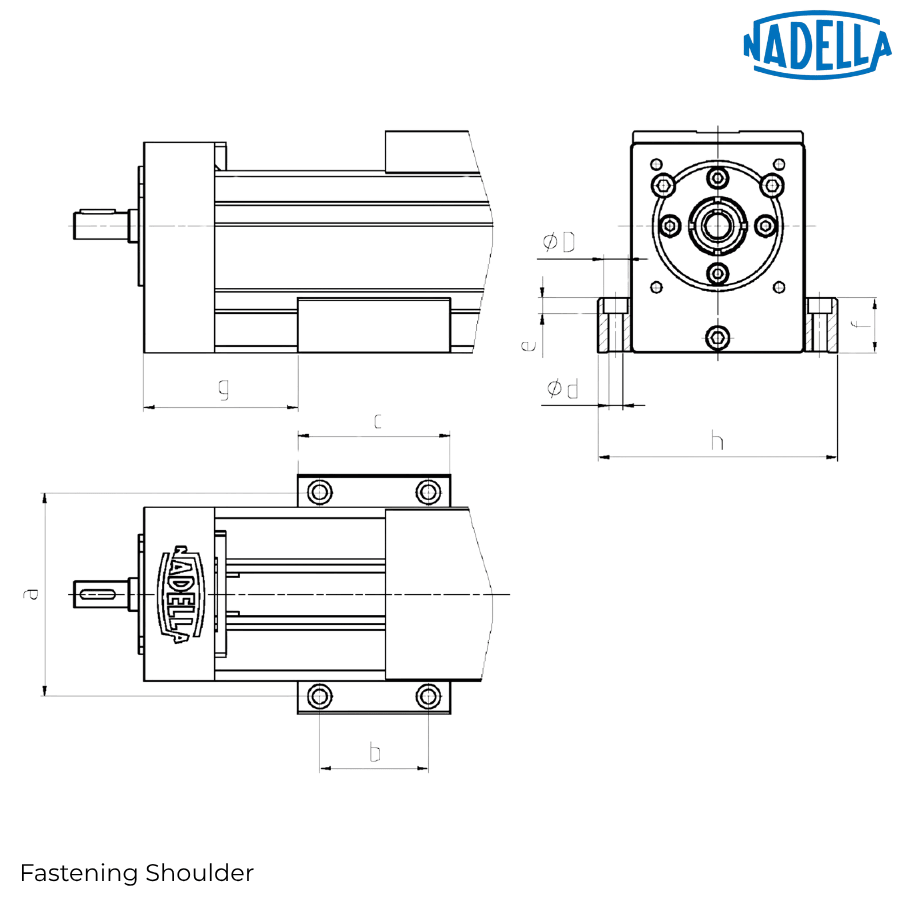

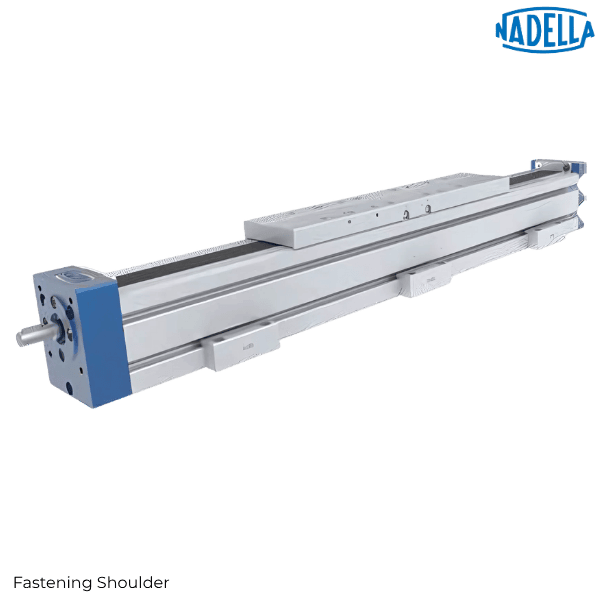

Fastening Shoulder (Bfl. B64):
Dimension (a1) - 80 mm
Dimension (b) - 28 mm
Dimension (c) - 41 mm
Dimension (d1) - 5.5 mm
Dimension (D1) - 10 mm
Dimension (e1) - 11 mm
Dimension (f) - 17 mm
Dimension (g)**** - 95 mm
Dimension (h) - 97 mm

Fastening Shoulder (Bfl. BK6)***:
Dimension (a1) - 80 mm
Dimension (c) - 20 mm
Dimension (d1) - 5.5 mm
Dimension (D1) - 10 mm
Dimension (e1) - 11 mm
Dimension (f) - 17 mm
Dimension (g)**** - 95 mm
Dimension (h) - 97 mm

Fastening Shoulder (Bfl. B66):
Dimension (a1) - 80 mm
Dimension (b) - 40 mm
Dimension (c) - 60 mm
Dimension (d1) - 5.5 mm
Dimension (D1) - 10 mm
Dimension (e1) - 11 mm
Dimension (f) - 17 mm
Dimension (g)**** - 95 mm
Dimension (h) - 97 mm

Other salient points to be noted:
* Ca. values depending on switch position without cable connection
** Maximum values, different dimensions possible
*** Short execution with one countersink
**** For drive belt actuators also depending on drive adapter

♦ ♦ Images are for representation purposes only
