AXNP 45-S NADELLA

Brand - NADELLA
Item Number - AXNP 45-S NADELLA
Category - Linear Module

Principal Dimensions (Metric):

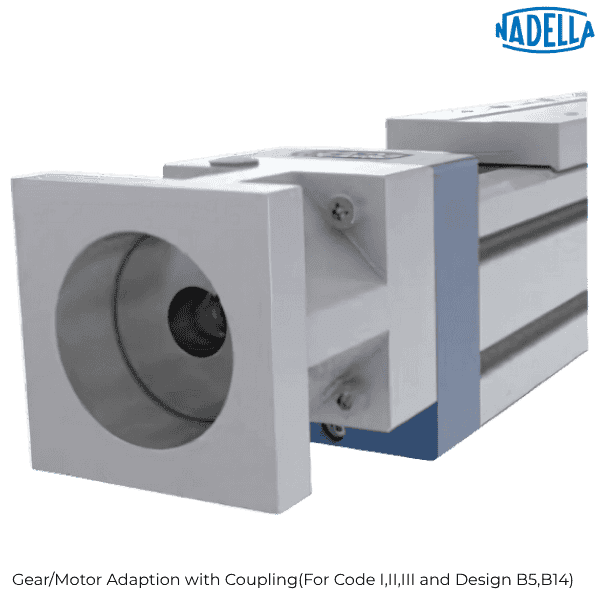

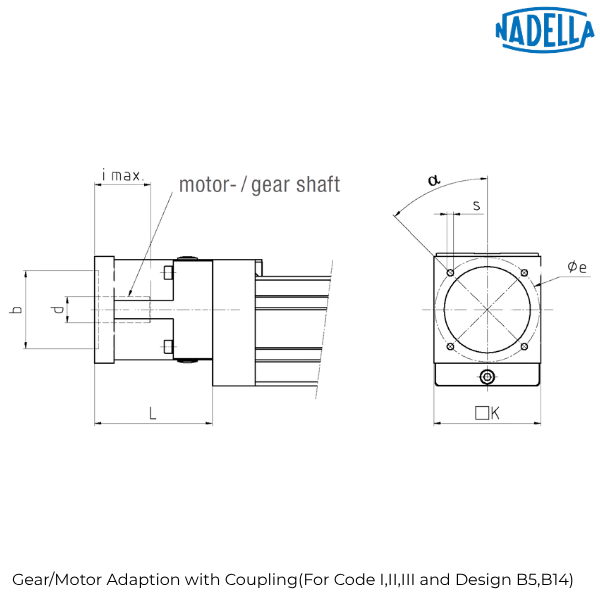

Gear / Motor Adaption with Coupling (Code I, Design B5):
Minimum Dimension (e) - 44 mm
Maximum Dimension (e) - 53 mm
Angle (α) - 0°
Dimension (S) - 4 x M5 x 12
Minimum Dimension (b) - 35 mm
Maximum Dimension (b) - 45 mm
Minimum Dimension (d) - 4 mm
Maximum Dimension (d) - 16 mm
Maximum Dimension (i) - 34 mm
Maximum Dimension (K) - 60 mm
Dimension (L) - 60 mm

Gear / Motor Adaption with Coupling (Code II, Design B5):
Minimum Dimension (e) - 50 mm
Maximum Dimension (e) - 70 mm
Angle (α) - 45°
Dimension (S) - 4 x M5 x 12
Minimum Dimension (b) - 35 mm
Maximum Dimension (b) - 58 mm
Minimum Dimension (d) - 4 mm
Maximum Dimension (d) - 16 mm
Maximum Dimension (i) - 34 mm
Maximum Dimension (K) - 60 mm
Dimension (L) - 60 mm

Gear / Motor Adaption with Coupling (Code III, Design B14):
Minimum Dimension (e) - 54 mm
Maximum Dimension (e) - 70 mm
Angle (α) - 45°
Dimension (S) - 4 x Ø 5.5
Minimum Dimension (b) - 35 mm
Maximum Dimension (b) - 58 mm
Minimum Dimension (d) - 4 mm
Maximum Dimension (d) - 16 mm
Maximum Dimension (i) - 34 mm
Maximum Dimension (K) - 60 mm
Dimension (L) - 60 mm

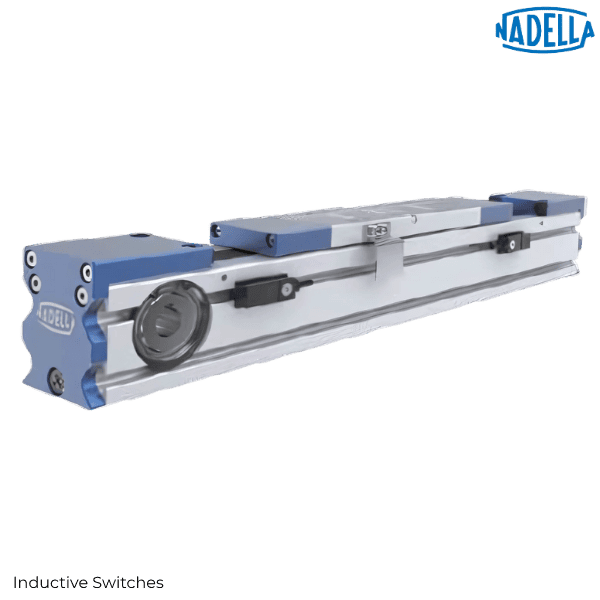

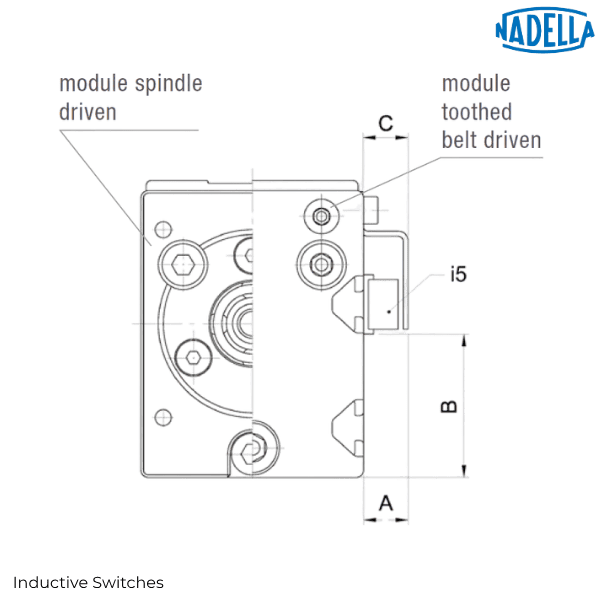

Inductive Switch:
Dimension (A) - 9 mm
switch Type - i5
Dimension (B)* - 29 mm
Dimension (C) - 9 mm
Nut Slot - 5 St-
Dimension (s) - M3, M4, M5
Design - E / S
Dimension (L) - 12 mm
Dimension (L1)** - 3 mm, 4 mm, 4 mm
Dimension (TA) - 1.5 Nm
Maximum Tensile Force - 500 N

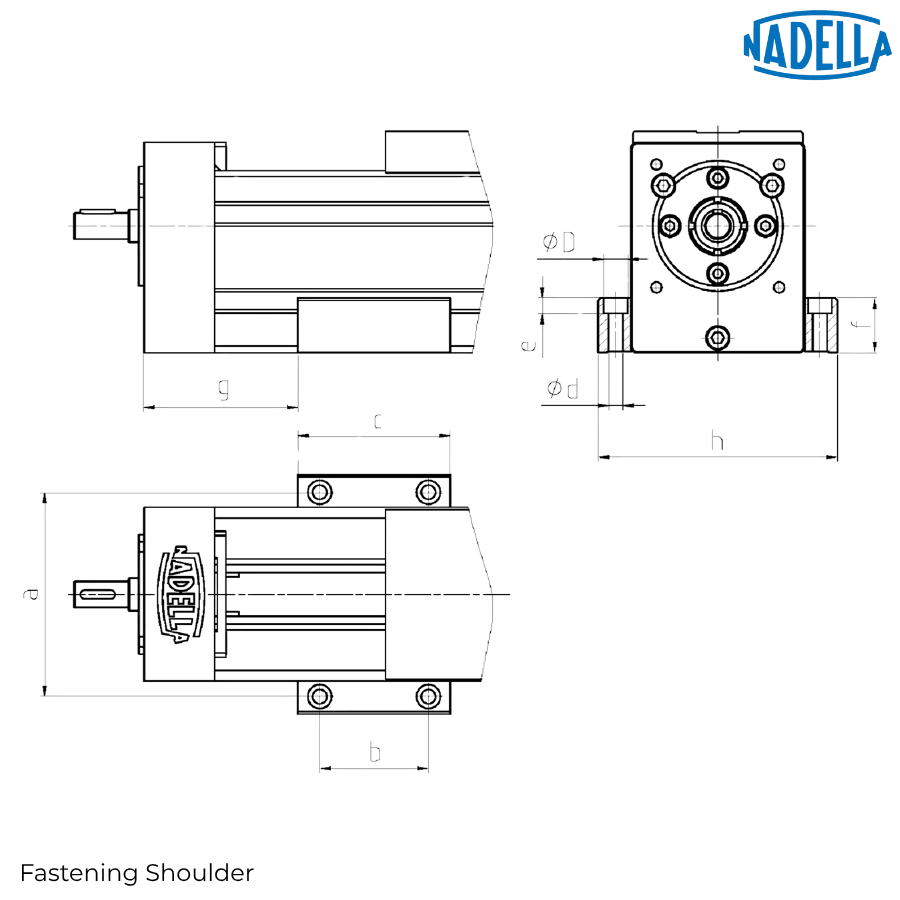

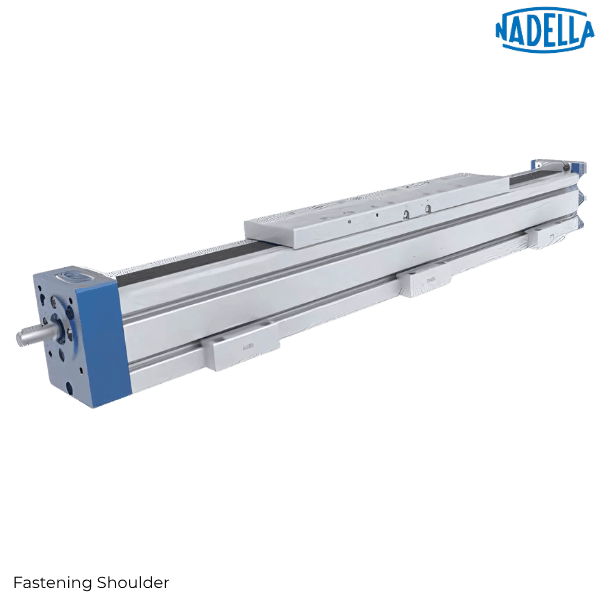

Fastening Shoulder (Bfl. BK4)***:
Dimension (a1) - 60 mm
Dimension (c) - 20 mm
Dimension (d1) - 5.5 mm
Dimension (D1) - 10 mm
Dimension (e1) - 5 mm
Dimension (f) - 11 mm
Dimension (g)**** - 68 mm
Dimension (h) - 74 mm

Fastening Shoulder (Bfl. B44):
Dimension (a1) - 60 mm
Dimension (b) - 28 mm
Dimension (c) - 41 mm
Dimension (d1) - 5.5 mm
Dimension (D1) - 10 mm
Dimension (e1) - 5 mm
Dimension (f) - 11 mm
Dimension (g)**** - 68 mm
Dimension (h) - 74 mm

Other salient points to be noted:
* Ca. values depending on switch position without cable connection
** Maximum values, different dimensions possible
*** Short execution with one countersink
**** For drive belt actuators also depending on drive adapter

♦ ♦ Images are for representation purposes only
