Description
Brand - INA
Item Number - AXK560X606X5 INA
Category - Axial Needle Roller and Cage Assembly
Weight (m) kg - 0.65
Bore Diameter Cage (Dc1) mm - 560
Outside Diameter (Dc) mm - 606
Rolling Element Diameter (Dw) mm - 5

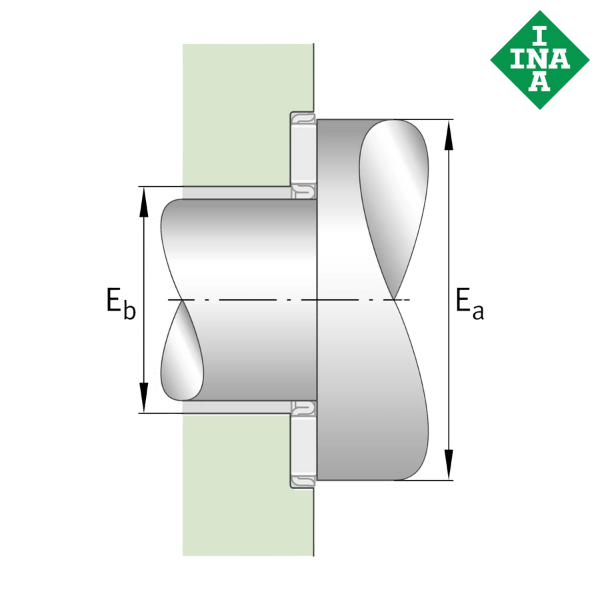

Raceway Dimension (Eb) mm - 562
Raceway Dimension (Ea) mm - 604
Basic Dynamic Load Rating (Ca) N - 227000
Basic Static Load Rating (C0a) N - 2500000
Fatigue Limit Load (Cua) N - 171000
Limiting Speed (1/min) - 170
Suitable Axial Bearing Washer - ASS560X604X2,3
Weight of the Bearing with Washer (m) kg - 0.73
Bore Diameter of Bearing Washer (d) mm - 560
Outside Diameter of Bearing Washer (D) mm - 604
Height of the Bearing Washer (B1) mm - 2.3
Mounting Dimension (d1) mm - 560
Maximum Mounting Dimension (D1) mm - 606
Basic Dynamic Reduced Load Rating with Washer (Ca) N - 172000
Basic Static Reduced Load Rating with Washer (C0a) N - 2360000
** Images are for representation purposes only
