AXK500X546X5 INA


Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - INA
Item Number - AXK500X546X5 INA
Category - Axial Needle Roller and Cage Assembly
Weight (m) kg - 0.59
Bore Diameter Cage (Dc1) mm - 500
Outside Diameter (Dc) mm - 546
Rolling Element Diameter (Dw) mm - 5

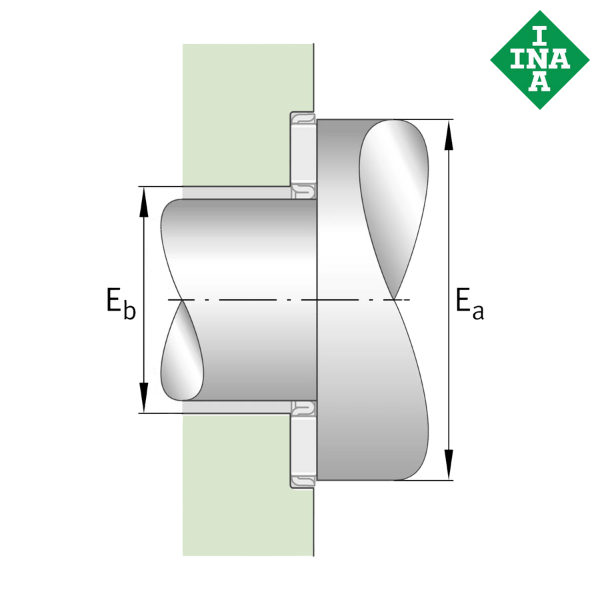

Raceway Diamension (Eb) mm - 502
Raceway Diamension (Ea) mm - 544
Basic Dynamic Load Rating (Ca) N - 215000
Basic Static Load Rating (C0a) N - 2260000
Fatigue Limit Load (Cua) N - 159000
Limiting Speed (1/min) - 190
Suitable Axial Bearing Washer - ASS500X544X2,3
Weight of the Bearing with Washer (m) kg - 0.65
Bore Diameter of Bearing Washer (d) mm - 500
Outside Diameter of Bearing Washer (D) mm - 544
Height of the Bearing Washer (B1) mm - 2.3
Mounting Dimension (d1) mm - 500
Maximum Mounting Dimension (D1) mm - 546
Basic Dynamic Reduced Load Rating with Washer (Ca) N - 163000
Basic Static Reduced Load Rating with Washer (C0a) N - 2120000

** Images are representation purposes only
