AXK460X490X5 INA


Country Of Origin: EU
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - INA
Item Number - AXK460X490X5 INA
Category - Axial Needle Roller and Cage Assembly
Weight (m) kg - 0.4
Bore Diameter Cage (Dc1) mm - 460
Outside Diameter (Dc) mm - 490
Rolling Element Diameter (Dw) mm - 5

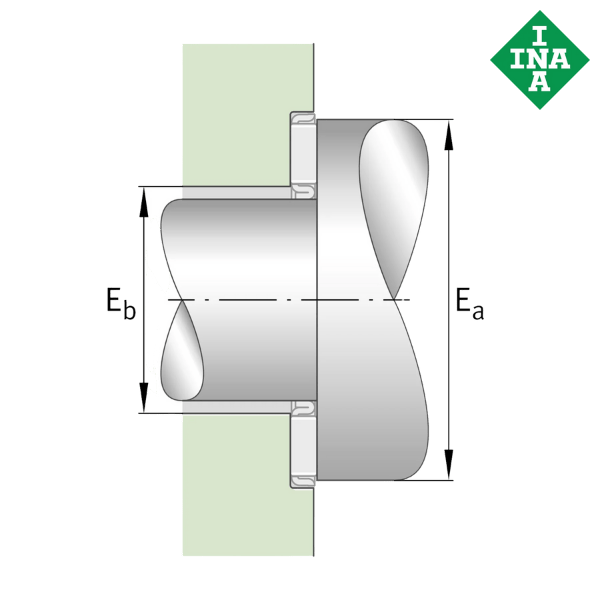

Raceway Dimension (Eb) mm - 462
Raceway Dimension (Ea) mm - 488
Basic Dynamic Load Rating (Ca) N - 133000
Basic Static Load Rating (C0a) N - 1180000
Fatigue Limit Load (Cua) N - 76000
Limiting Speed (1/min) - 210
Suitable Axial Bearing Washer - ASS460X490X2,3
Weight of the Bearing with Washer (m) kg - 0.43
Bore Diameter of Bearing Washer (d) mm - 460
Outside Diameter of Bearing Washer (D) mm - 490
Height of the Bearing Washer (B1) mm - 2.3
Mounting Dimension (d1) mm - 460
Maximum Mounting Dimension (D1) mm - 491
Basic Dynamic Reduced Load Rating with Washer (Ca) N - 104000
Basic Static Reduced Load Rating with Washer (C0a) N - 1160000
