AXK320X350X5 INA


Country Of Origin: EU
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - INA
Item Number - AXK320X350X5 INA
Category - Axial Needle Roller and Cage Assembly
Weight (m) kg - 0.29
Bore Diameter Cage (Dc1) mm - 320
Outside Diameter (Dc) mm - 350
Rolling Element Diameter (Dw) mm - 5

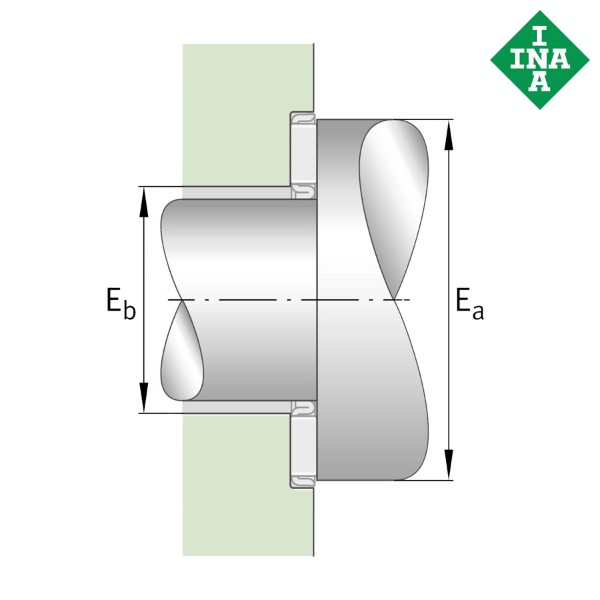

Raceway Dimension (Eb) mm - 322
Raceway Dimension (Ea) mm - 348
Basic Dynamic Load Rating (Ca) N - 111000
Basic Static Load Rating (C0a) N - 840000
Fatigue Limit Load (Cua) N - 60000
Limiting Speed (1/min) - 300

** Images are for representation purposes only
