AX 9 17 NADELLA

Brand - NADELLA
Item Number - AX 9 17 NADELLA
Category - Needle Thrust Bearing (Thin Series)

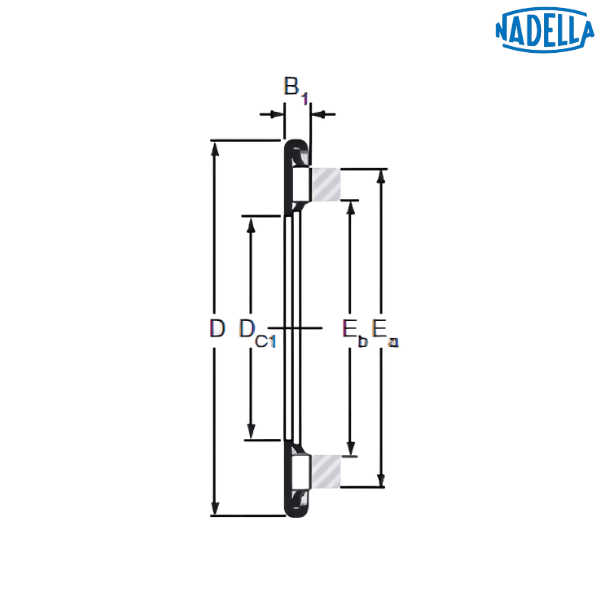

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter (∅) - 9 mm
Inner Diameter (Dc1) - 9 mm
Outer Diameter (D) - 17 mm
Width (B1) - 2.3 mm
Dimension (Eb) - 10.3 mm
Dimension (Ea) - 14.9 mm
Dynamic Load Rating (C) - 4.05 kN
Static Load Rating (C0) - 9.5 kN
Speed Rating with Oil - 19000 rpm
Weight - 0.002 kg

Compatible Needle Thrust Plate :
Needle Thrust Plate (Thin Series) - CP 9 17
Inner Ring (d) - 9 mm
Outer Ring (d1) - 16.4 mm
Width (h) - 0.8 mm
Weight - 0.001 kg

Description of Prefix :
AX - Needle thrust bearing
