AX 9 120 155 NADELLA

Brand - NADELLA
Item Number - AX 9 120 155 NADELLA
Category - Needle Thrust Bearing (Thick Series)

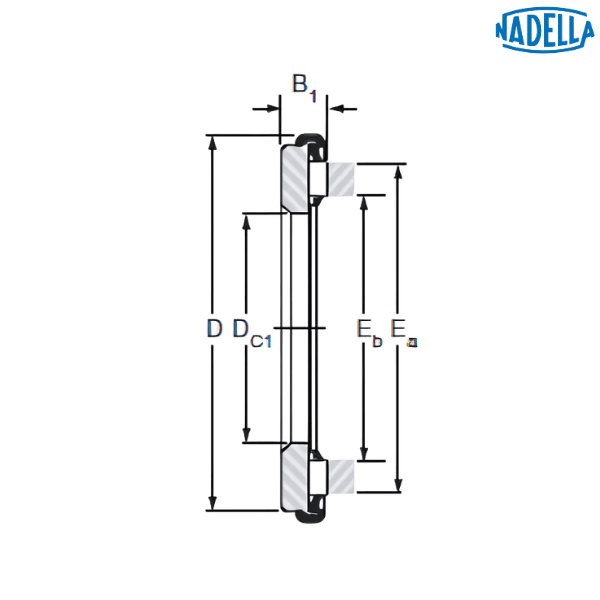

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter (∅) - 120 mm
Inner Diameter (Dc1) - 120 mm
Outer Diameter (D) - 155 mm
Width (B1) - 9 mm
Dimension (Eb) - 124.2 mm
Dimension (Ea) - 147.3 mm
Dynamic Load Rating (C) - 80 kN
Static Load Rating (C0) - 590 kN
Speed Rating with Oil - 1800 rpm
Weight - 0.424 kg

Compatible Needle Thrust Plate :
Needle Thrust Plate (Thick Series) - CP 6 120 155
Inner Ring (d) - 120 mm
Outer Ring (d1) - 153.8 mm
Width (h) - 6 mm
Weight - 0.323 kg

Description of Prefix :
AX - Needle thrust bearing

♦ ♦ Images are for representation purposes only
