Description
Brand - NADELLA
Item Number - AX 9 110 145 NADELLA
Category - Needle Thrust Bearing (Thick Series)

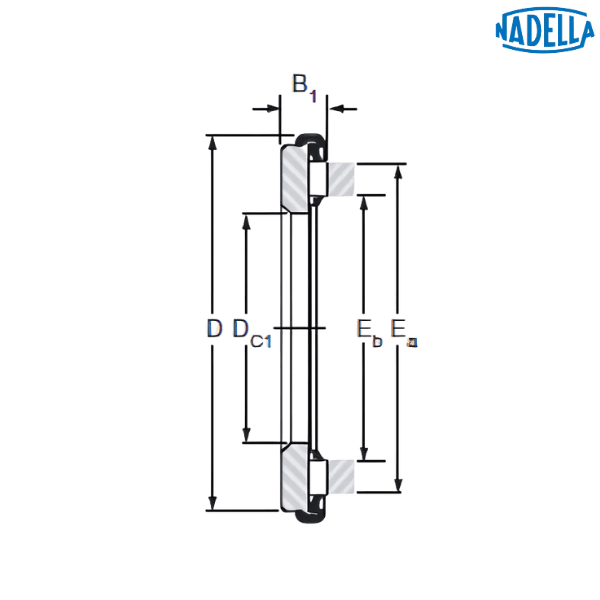

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter (∅) - 110 mm
Inner Diameter (Dc1) - 110 mm
Outer Diameter (D) - 145 mm
Width (B1) - 9 mm
Dimension (Eb) - 114.2 mm
Dimension (Ea) - 137.3 mm
Dynamic Load Rating (C) - 77 kN
Static Load Rating (C0) - 550 kN
Speed Rating with Oil - 2000 rpm
Weight - 0.393 kg
Compatible Needle Thrust Plate :
Needle Thrust Plate (Thick Series) - CP 6 110 145
Inner Ring (d) - 110 mm
Outer Ring (d1) - 143.8 mm
Width (h) - 6 mm
Weight - 0.3 kg
Description of Prefix :
AX - Needle thrust bearing
♦ ♦ Images are for representation purposes only
Item Number - AX 9 110 145 NADELLA
Category - Needle Thrust Bearing (Thick Series)
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter (∅) - 110 mm
Inner Diameter (Dc1) - 110 mm
Outer Diameter (D) - 145 mm
Width (B1) - 9 mm
Dimension (Eb) - 114.2 mm
Dimension (Ea) - 137.3 mm
Dynamic Load Rating (C) - 77 kN
Static Load Rating (C0) - 550 kN
Speed Rating with Oil - 2000 rpm
Weight - 0.393 kg
Compatible Needle Thrust Plate :
Needle Thrust Plate (Thick Series) - CP 6 110 145
Inner Ring (d) - 110 mm
Outer Ring (d1) - 143.8 mm
Width (h) - 6 mm
Weight - 0.3 kg
Description of Prefix :
AX - Needle thrust bearing
♦ ♦ Images are for representation purposes only
