AX 9 100 135 NADELLA

Brand - NADELLA
Item Number - AX 9 100 135 NADELLA
Category - Needle Thrust Bearing (Thick Series)

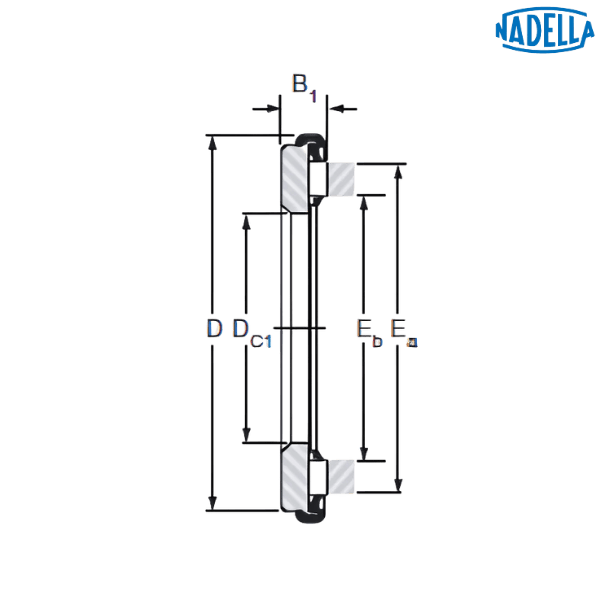

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter (∅) - 100 mm
Inner Diameter (Dc1) - 100 mm
Outer Diameter (D) - 135 mm
Width (B1) - 9 mm
Dimension (Eb) - 104.2 mm
Dimension (Ea) - 127.3 mm
Dynamic Load Rating (C) - 73 kN
Static Load Rating (C0) - 490 kN
Speed Rating with Oil - 2100 rpm
Weight - 0.364 kg

Compatible Needle Thrust Plate :
Needle Thrust Plate (Thick Series) - CP 6 100 135
Inner Ring (d) - 100 mm
Outer Ring (d1) - 133.8 mm
Width (h) - 6 mm
Weight - 0.277 kg

Description of Prefix :
AX - Needle thrust bearing

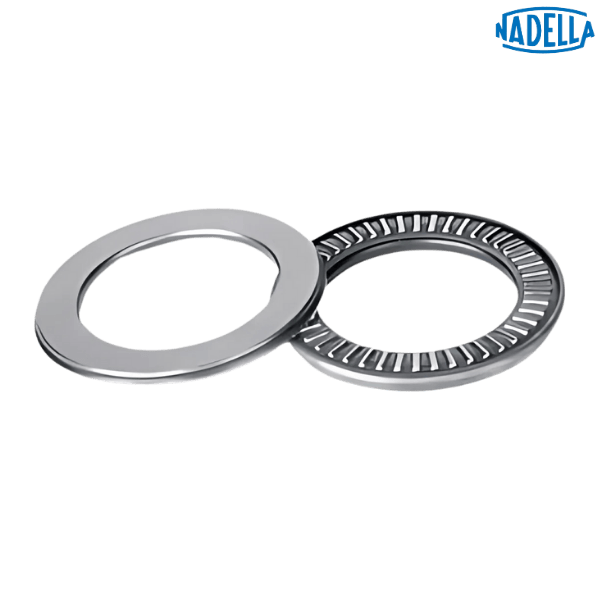

♦ ♦ Images are for representation purposes only
