AX 7 15 NADELLA

Brand - NADELLA
Item Number - AX 7 15 NADELLA
Category - Needle Thrust Bearing (Thin Series)

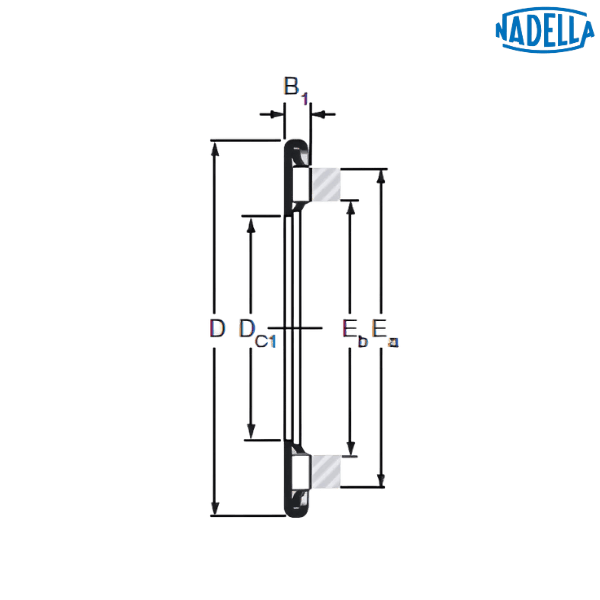

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter (∅) - 7 mm
Inner Diameter (Dc1) - 7 mm
Outer Diameter (D) - 15 mm
Width (B1) - 2.3 mm
Dimension (Eb) - 8.3 mm
Dimension (Ea) - 12.9 mm
Dynamic Load Rating (C) - 3.55 kN
Static Load Rating (C0) - 7.6 kN
Speed Rating with Oil - 22000 rpm
Weight - 0.002 kg

Compatible Needle Thrust Plate :
Needle Thrust Plate (Thin Series) - CP 7 15
Inner Ring (d) - 7 mm
Outer Ring (d1) - 14.4 mm
Width (h) - 0.8 mm
Weight - 0.001 kg

Description of Prefix :
AX - Needle thrust bearing
