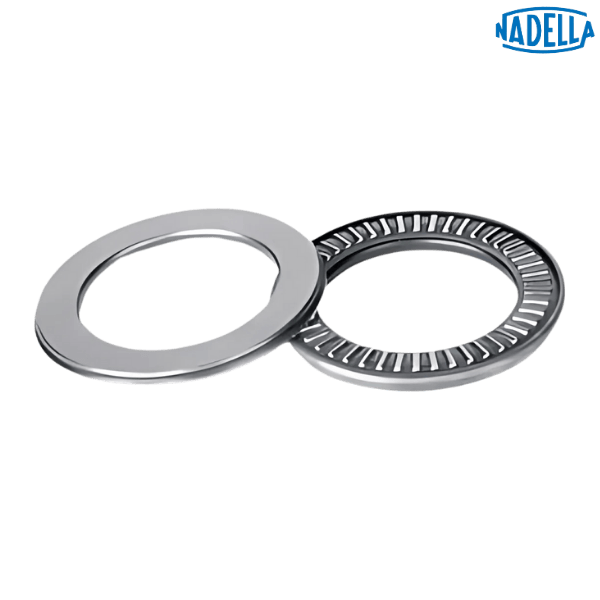

AX 6 85 110 NADELLA

Brand - NADELLA
Item Number - AX 6 85 110 NADELLA
Category - Needle Thrust Bearing (Thick Series)

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter (∅) - 85 mm
Inner Diameter (Dc1) - 85 mm
Outer Diameter (D) - 110 mm
Width (B1) - 6 mm
Dimension (Eb) - 88.5 mm
Dimension (Ea) - 104.2 mm
Dynamic Load Rating (C) - 38 kN
Static Load Rating (C0) - 270 kN
Speed Rating with Oil - 2600 rpm
Weight - 0.142 kg

Compatible Needle Thrust Plate :
Needle Thrust Plate (Thick Series) - CP 4 85 110
Inner Ring (d) - 85 mm
Outer Ring (d1) - 109.3 mm
Width (h) - 4 mm
Weight - 0.111 kg

Description of Prefix :
AX - Needle thrust bearing

♦ ♦ Images are for representation purposes only
