AX 55 78 NADELLA

Brand - NADELLA
Item Number - AX 55 78 NADELLA
Category - Needle Thrust Bearing (Thin Series)

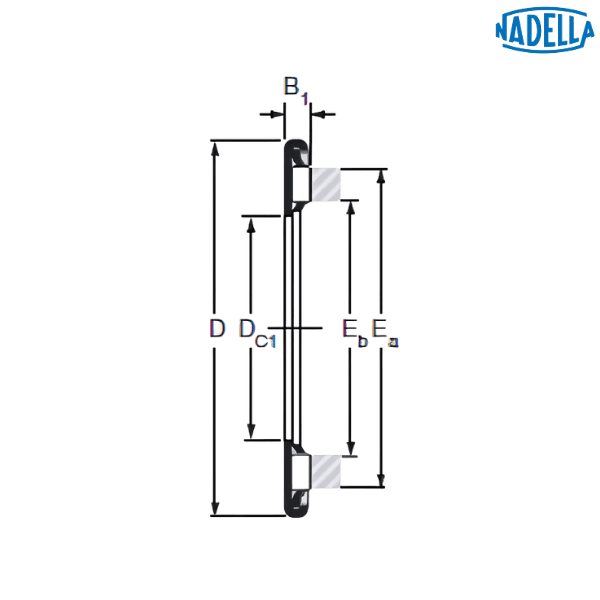

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter (∅) - 55 mm
Inner Diameter (Dc1) - 55 mm
Outer Diameter (D) - 78 mm
Width (B1) - 2.8 mm
Dimension (Eb) - 58.4 mm
Dimension (Ea) - 72.5 mm
Dynamic Load Rating (C) - 28.5 kN
Static Load Rating (C0) - 164 kN
Speed Rating with Oil - 3800 rpm
Weight - 0.034 kg

Compatible Needle Thrust Plate :
Needle Thrust Plate (Thin Series) - CP 55 78
Inner Ring (d) - 55 mm
Outer Ring (d1) - 77.4 mm
Width (h) - 0.8 mm
Weight - 0.014 kg

Description of Prefix :
AX - Needle thrust bearing
