AX 50 70 NADELLA

Brand - NADELLA
Item Number - AX 50 70 NADELLA
Category - Needle Thrust Bearing (Thin Series)

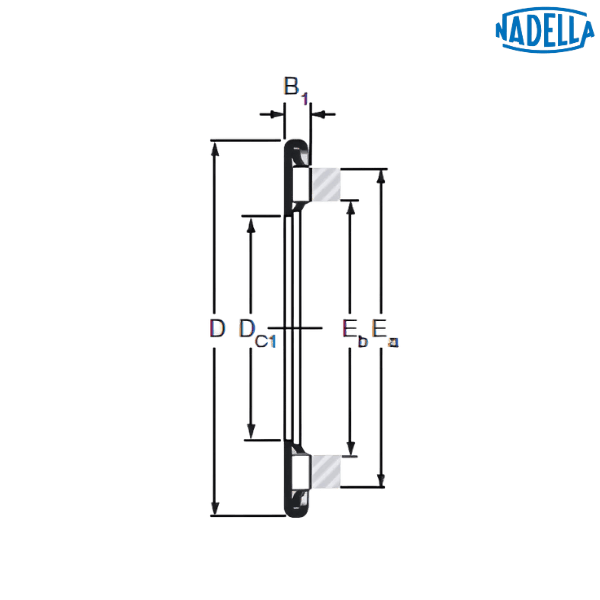

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter (∅) - 50 mm
Inner Diameter (Dc1) - 50 mm
Outer Diameter (D) - 70 mm
Width (B1) - 2.8 mm
Dimension (Eb) - 53.3 mm
Dimension (Ea) - 65.7 mm
Dynamic Load Rating (C) - 22.5 kN
Static Load Rating (C0) - 118 kN
Speed Rating with Oil - 4000 rpm
Weight - 0.026 kg

Compatible Needle Thrust Plate :
Needle Thrust Plate (Thin Series) - CP 50 70
Inner Ring (d) - 50 mm
Outer Ring (d1) - 69.4 mm
Width (h) - 0.8 mm
Weight - 0.011 kg

Description of Prefix :
AX - Needle thrust bearing

♦ ♦ Images are for representation purposes only
