Description
Brand - NADELLA
Item Number - AX 5 30 47 NADELLA
Category - Needle Thrust Bearing (Thick Series)

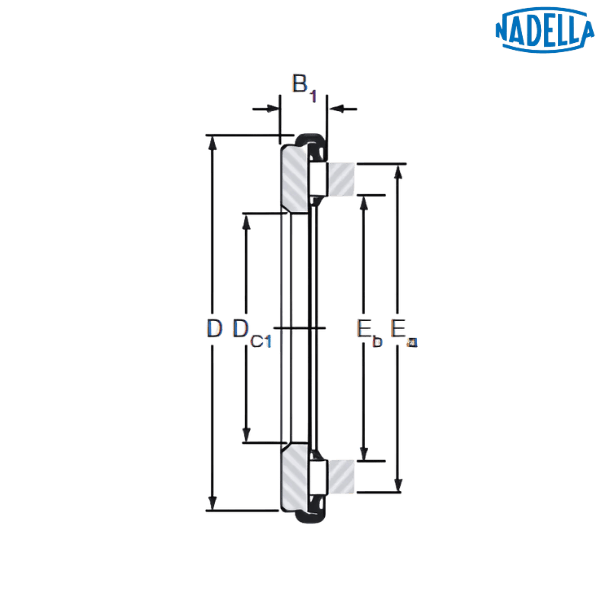

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter (∅) - 30 mm
Inner Diameter (Dc1) - 30 mm
Outer Diameter (D) - 47 mm
Width (B1) - 5 mm
Dimension (Eb) - 32.7 mm
Dimension (Ea) - 42.4 mm
Dynamic Load Rating (C) - 14.5 kN
Static Load Rating (C0) - 57 kN
Speed Rating with Oil - 6500 rpm
Weight - 0.029 kg
Compatible Needle Thrust Plate :
Needle Thrust Plate (Thick Series) - CP 3 30 47
Inner Ring (d) - 30 mm
Outer Ring (d1) - 46.5 mm
Width (h) - 3 mm
Weight - 0.022 kg
Description of Prefix :
AX - Needle thrust bearing
♦ ♦ Images are for representation purposes only
Item Number - AX 5 30 47 NADELLA
Category - Needle Thrust Bearing (Thick Series)
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter (∅) - 30 mm
Inner Diameter (Dc1) - 30 mm
Outer Diameter (D) - 47 mm
Width (B1) - 5 mm
Dimension (Eb) - 32.7 mm
Dimension (Ea) - 42.4 mm
Dynamic Load Rating (C) - 14.5 kN
Static Load Rating (C0) - 57 kN
Speed Rating with Oil - 6500 rpm
Weight - 0.029 kg
Compatible Needle Thrust Plate :
Needle Thrust Plate (Thick Series) - CP 3 30 47
Inner Ring (d) - 30 mm
Outer Ring (d1) - 46.5 mm
Width (h) - 3 mm
Weight - 0.022 kg
Description of Prefix :
AX - Needle thrust bearing
♦ ♦ Images are for representation purposes only
