Description
Brand - NADELLA
Item Number - AX 5 13 NADELLA
Category - Needle Thrust Bearing (Thin Series)

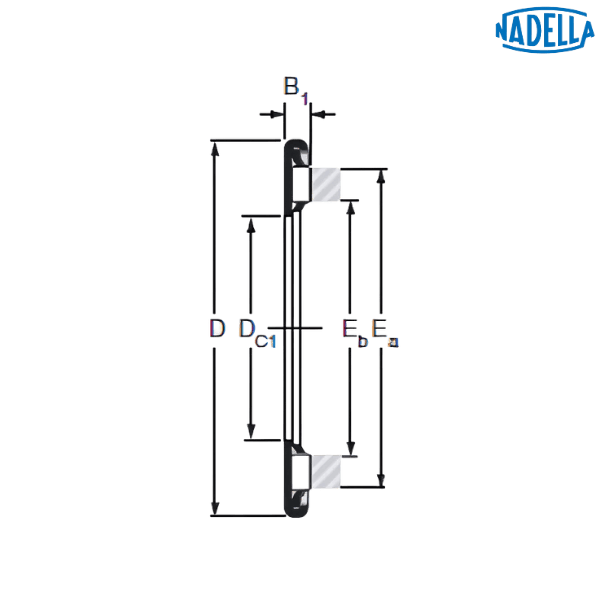

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter (∅) - 5 mm
Inner Diameter (Dc1) - 5 mm
Outer Diameter (D) - 13 mm
Width (B1) - 2.3 mm
Dimension (Eb) - 6.3 mm
Dimension (Ea) - 10.9 mm
Dynamic Load Rating (C) - 3 kN
Static Load Rating (C0) - 5.7 kN
Speed Rating with Oil - 25000 rpm
Weight - 0.001 kg
Compatible Needle Thrust Plate :
Needle Thrust Plate (Thin Series) - CP 5 13
Inner Ring (d) - 5 mm
Outer Ring (d1) - 12.4 mm
Width (h) - 0.8 mm
Weight - 0.001 kg
Description of Prefix :
AX - Needle thrust bearing

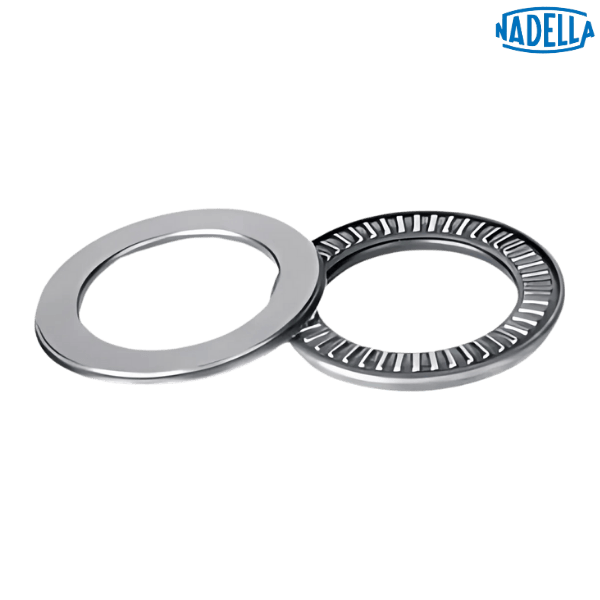

♦ ♦ Images are for representation purposes only
Item Number - AX 5 13 NADELLA
Category - Needle Thrust Bearing (Thin Series)
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter (∅) - 5 mm
Inner Diameter (Dc1) - 5 mm
Outer Diameter (D) - 13 mm
Width (B1) - 2.3 mm
Dimension (Eb) - 6.3 mm
Dimension (Ea) - 10.9 mm
Dynamic Load Rating (C) - 3 kN
Static Load Rating (C0) - 5.7 kN
Speed Rating with Oil - 25000 rpm
Weight - 0.001 kg
Compatible Needle Thrust Plate :
Needle Thrust Plate (Thin Series) - CP 5 13
Inner Ring (d) - 5 mm
Outer Ring (d1) - 12.4 mm
Width (h) - 0.8 mm
Weight - 0.001 kg
Description of Prefix :
AX - Needle thrust bearing
♦ ♦ Images are for representation purposes only
