Description
Brand - NADELLA
Item Number - AX 40 60 NADELLA
Category - Needle Thrust Bearing (Thin Series)

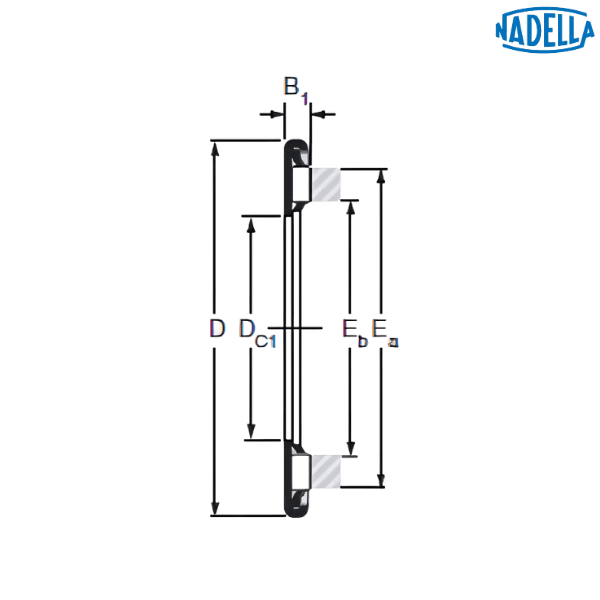

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter (∅) - 40 mm
Inner Diameter (Dc1) - 40 mm
Outer Diameter (D) - 60 mm
Width (B1) - 2.8 mm
Dimension (Eb) - 43 mm
Dimension (Ea) - 54.9 mm
Dynamic Load Rating (C) - 20.4 kN
Static Load Rating (C0) - 96 kN
Speed Rating with Oil - 5000 rpm
Weight - 0.024 kg
Compatible Needle Thrust Plate :
Needle Thrust Plate (Thin Series) - CP 40 60
Inner Ring (d) - 40 mm
Outer Ring (d1) - 59.5 mm
Width (h) - 0.8 mm
Weight - 0.009 kg
Description of Prefix :
AX - Needle thrust bearing
♦ ♦ Images are for representation purposes only
Item Number - AX 40 60 NADELLA
Category - Needle Thrust Bearing (Thin Series)
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter (∅) - 40 mm
Inner Diameter (Dc1) - 40 mm
Outer Diameter (D) - 60 mm
Width (B1) - 2.8 mm
Dimension (Eb) - 43 mm
Dimension (Ea) - 54.9 mm
Dynamic Load Rating (C) - 20.4 kN
Static Load Rating (C0) - 96 kN
Speed Rating with Oil - 5000 rpm
Weight - 0.024 kg
Compatible Needle Thrust Plate :
Needle Thrust Plate (Thin Series) - CP 40 60
Inner Ring (d) - 40 mm
Outer Ring (d1) - 59.5 mm
Width (h) - 0.8 mm
Weight - 0.009 kg
Description of Prefix :
AX - Needle thrust bearing
♦ ♦ Images are for representation purposes only
