Description
Brand - NADELLA
Item Number - AX 4.5 120 155 NADELLA
Category - Needle Thrust Bearing (Thin Series)

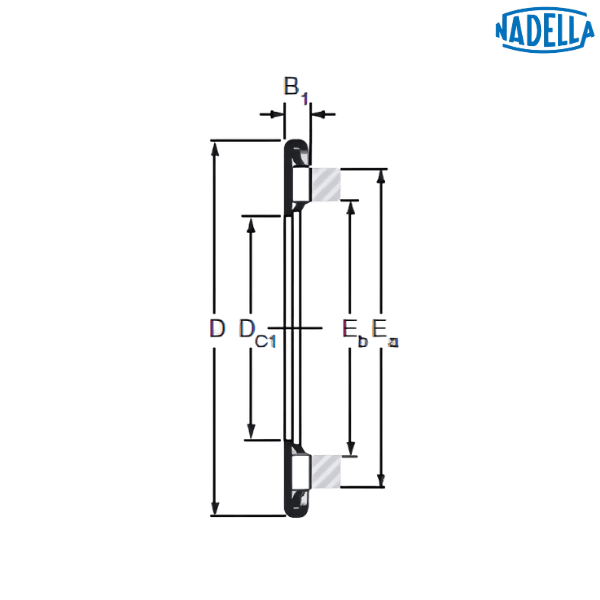

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter (∅) - 120 mm
Inner Diameter (Dc1) - 120 mm
Outer Diameter (D) - 155 mm
Width (B1) - 4.5 mm
Dimension (Eb) - 124.2 mm
Dimension (Ea) - 147.3 mm
Dynamic Load Rating (C) - 80 kN
Static Load Rating (C0) - 590 kN
Speed Rating with Oil - 1800 rpm
Weight - 0.182 kg
Compatible Needle Thrust Plate :
Needle Thrust Plate (Thin Series) - CP 1.5 120 155
Inner Ring (d) - 120 mm
Outer Ring (d1) - 153.8 mm
Width (h) - 1.5 mm
Weight - 0.081 kg
Description of Prefix :
AX - Needle thrust bearing

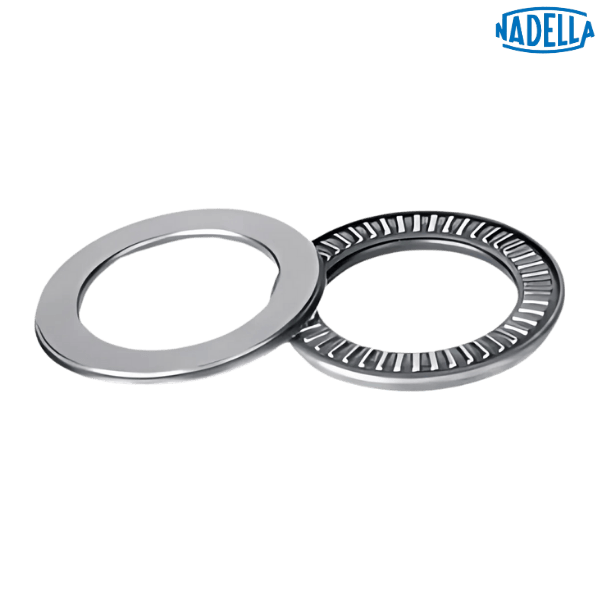

♦ ♦ Images are for representation purposes only
Item Number - AX 4.5 120 155 NADELLA
Category - Needle Thrust Bearing (Thin Series)
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter (∅) - 120 mm
Inner Diameter (Dc1) - 120 mm
Outer Diameter (D) - 155 mm
Width (B1) - 4.5 mm
Dimension (Eb) - 124.2 mm
Dimension (Ea) - 147.3 mm
Dynamic Load Rating (C) - 80 kN
Static Load Rating (C0) - 590 kN
Speed Rating with Oil - 1800 rpm
Weight - 0.182 kg
Compatible Needle Thrust Plate :
Needle Thrust Plate (Thin Series) - CP 1.5 120 155
Inner Ring (d) - 120 mm
Outer Ring (d1) - 153.8 mm
Width (h) - 1.5 mm
Weight - 0.081 kg
Description of Prefix :
AX - Needle thrust bearing
♦ ♦ Images are for representation purposes only
