AX 4 17 30 NADELLA

Brand - NADELLA
Item Number - AX 4 17 30 NADELLA
Category - Needle Thrust Bearing (Thick Series)

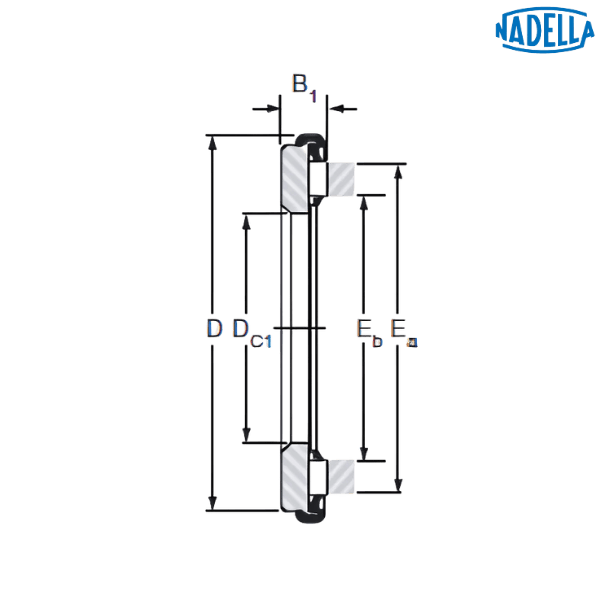

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter (∅) - 17 mm
Inner Diameter (Dc1) - 17 mm
Outer Diameter (D) - 30 mm
Width (B1) - 4 mm
Dimension (Eb) - 19 mm
Dimension (Ea) - 26.6 mm
Dynamic Load Rating (C) - 7.8 kN
Static Load Rating (C0) - 22 kN
Speed Rating with Oil - 10500 rpm
Weight - 0.01 kg

Compatible Needle Thrust Plate :
Needle Thrust Plate (Thick Series) - CP 2 17 30
Inner Ring (d) - 17 mm
Outer Ring (d1) - 29.5 mm
Width (h) - 2 mm
Weight - 0.007 kg

Description of Prefix :
AX - Needle thrust bearing

♦ ♦ Images are for representation purposes only
