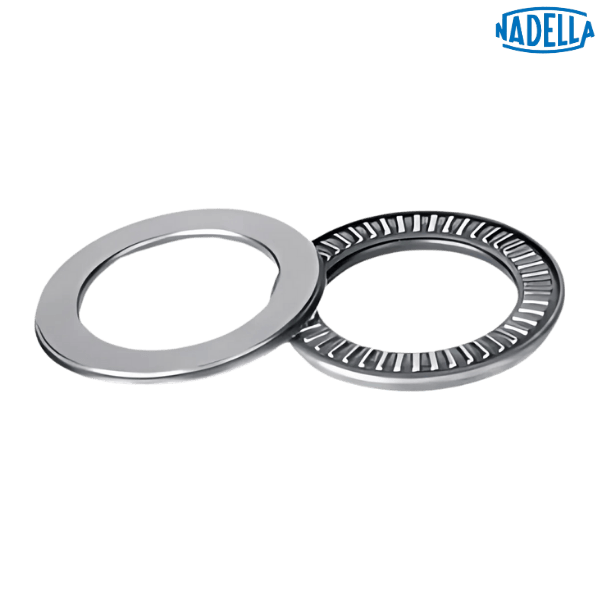

AX 35 53 NADELLA

Brand - NADELLA
Item Number - AX 35 53 NADELLA
Category - Needle Thrust Bearing (Thin Series)

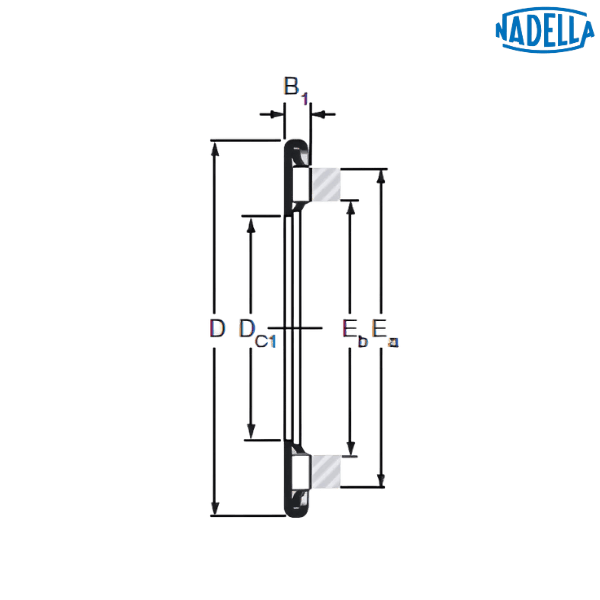

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter (∅) - 35 mm
Inner Diameter (Dc1) - 35 mm
Outer Diameter (D) - 53 mm
Width (B1) - 2.8 mm
Dimension (Eb) - 37.2 mm
Dimension (Ea) - 49 mm
Dynamic Load Rating (C) - 18.9 kN
Static Load Rating (C0) - 84 kN
Speed Rating with Oil - 5500 rpm
Weight - 0.019 kg

Compatible Needle Thrust Plate :
Needle Thrust Plate (Thin Series) - CP 35 53
Inner Ring (d) - 35 mm
Outer Ring (d1) - 52.5 mm
Width (h) - 0.8 mm
Weight - 0.007 kg

Description of Prefix :
AX - Needle thrust bearing

♦ ♦ Images are for representation purposes only
