AX 3.5 75 100 NADELLA

Brand - NADELLA
Item Number - AX 3.5 75 100 NADELLA
Category - Needle Thrust Bearing (Thin Series)

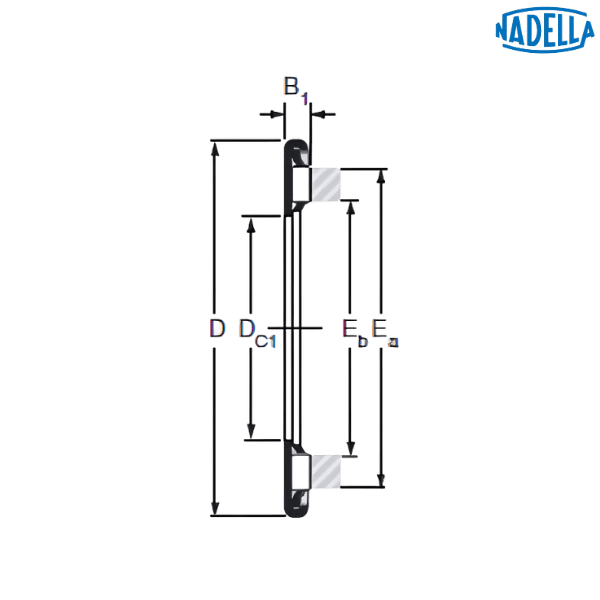

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter (∅) - 75 mm
Inner Diameter (Dc1) - 75 mm
Outer Diameter (D) - 100 mm
Width (B1) - 3.5 mm
Dimension (Eb) - 78.5 mm
Dimension (Ea) - 94.2 mm
Dynamic Load Rating (C) - 36 kN
Static Load Rating (C0) - 240 kN
Speed Rating with Oil - 2900 rpm
Weight - 0.065 kg

Compatible Needle Thrust Plate :
Needle Thrust Plate (Thin Series) - CP 1.5 75 100
Inner Ring (d) - 75 mm
Outer Ring (d1) - 99.3 mm
Width (h) - 1.5 mm
Weight - 0.037 kg

Description of Prefix :
AX - Needle thrust bearing

♦ ♦ Images are for representation purposes only
