AX 20 35 NADELLA

Brand - NADELLA
Item Number - AX 20 35 NADELLA
Category - Needle Thrust Bearing (Thin Series)

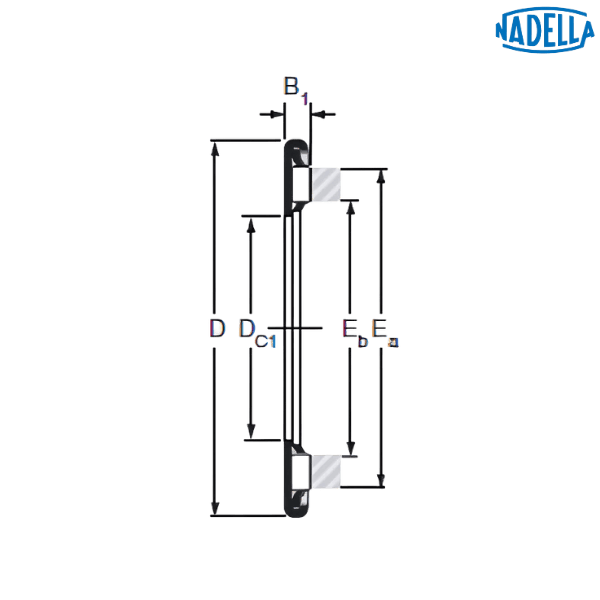

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter (∅) - 20 mm
Inner Diameter (Dc1) - 20 mm
Outer Diameter (D) - 35 mm
Width (B1) - 2.8 mm
Dimension (Eb) - 22 mm
Dimension (Ea) - 31.6 mm
Dynamic Load Rating (C) - 11.8 kN
Static Load Rating (C0) - 39 kN
Speed Rating with Oil - 9000 rpm
Weight - 0.01 kg

Compatible Needle Thrust Plate :
Needle Thrust Plate (Thin Series) - CP 20 35
Inner Ring (d) - 20 mm
Outer Ring (d1) - 34.5 mm
Width (h) - 0.8 mm
Weight - 0.004 kg

Description of Prefix :
AX - Needle thrust bearing
