AX 15 28 NADELLA

Brand - NADELLA
Item Number - AX 15 28 NADELLA
Category - Needle Thrust Bearing (Thin Series)

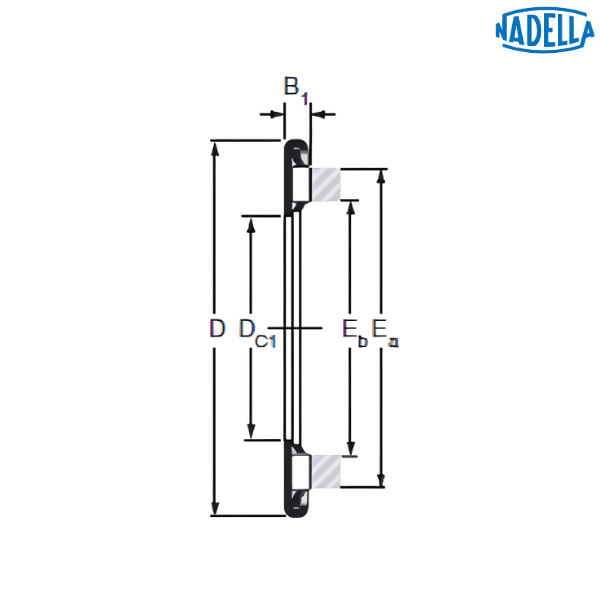

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter (∅) - 15 mm
Inner Diameter (Dc1) - 15 mm
Outer Diameter (D) - 28 mm
Width (B1) - 2.8 mm
Dimension (Eb) - 17 mm
Dimension (Ea) - 24.6 mm
Dynamic Load Rating (C) - 7.4 kN
Static Load Rating (C0) - 20 kN
Speed Rating with Oil - 11500 rpm
Weight - 0.007 kg

Compatible Needle Thrust Plate :
Needle Thrust Plate (Thin Series) - CP 15 28
Inner Ring (d) - 15 mm
Outer Ring (d1) - 27.5 mm
Width (h) - 0.8 mm
Weight - 0.003 kg

Description of Prefix :
AX - Needle thrust bearing

♦ ♦ Images are for representation purposes only
