AX 15 240 300 NADELLA

Brand - NADELLA
Item Number - AX 15 240 300 NADELLA
Category - Needle Thrust Bearing (Thick Series)

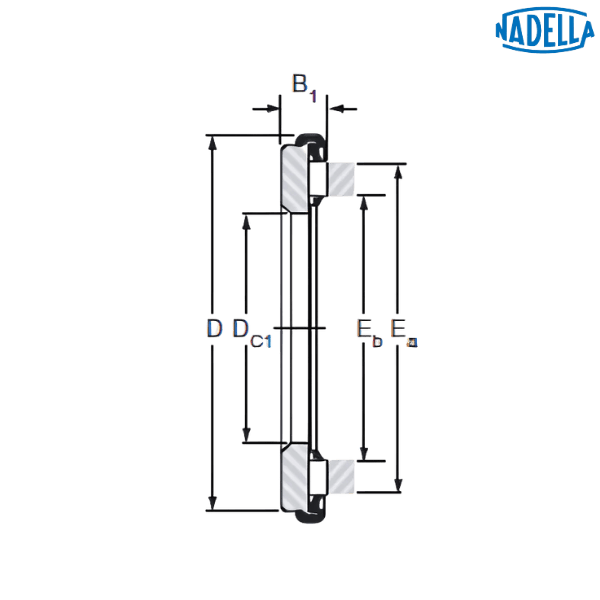

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 240 mm
Inner Diameter (DC1) - 240 mm
Outer Diameter (D) - 300 mm
Width (B1) - 15 mm
Dimension (Eb) - 246 mm
Dimension (Ea) - 286 mm
Dynamic Load Rating (C) - 280 kN
Static Load Rating (C0) - 2240 kN
Speed Rating with Oil - 900 rpm
Weight - 2.3 kg

Compatible Needle Thrust Plate :
Needle Thrust Plate (Thick Series) - CP 9 240 300
Inner Ring (d) - 240 mm
Outer Ring (d1) - 298.5 mm
Width (h) - 9 mm
Weight - 1.6 kg

Description of Prefix :
AX - Needle thrust bearing

♦ ♦ Images are for representation purposes only
