Description
Brand - NADELLA
Item Number - AX 14 220 270 NADELLA
Category - Needle Thrust Bearing (Thick Series)

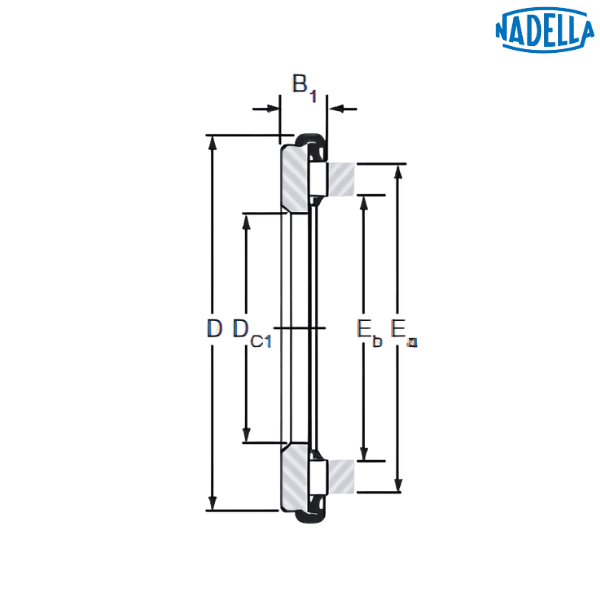

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 220 mm
Inner Diameter (DC1) - 220 mm
Outer Diameter (D) - 270 mm
Width (B1) - 14 mm
Dimension (Eb) - 226 mm
Dimension (Ea) - 262 mm
Dynamic Load Rating (C) - 248 kN
Static Load Rating (C0) - 1850 kN
Speed Rating with Oil - 1000 rpm
Weight - 1.6 kg
Compatible Needle Thrust Plate :
Needle Thrust Plate (Thick Series) - CP 8 220 270
Inner Ring (d) - 220 mm
Outer Ring (d1) - 268.3 mm
Width (h) - 8 mm
Weight - 1.1 kg
Description of Prefix :
AX - Needle thrust bearing
♦ ♦ Images are for representation purposes only
Item Number - AX 14 220 270 NADELLA
Category - Needle Thrust Bearing (Thick Series)
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 220 mm
Inner Diameter (DC1) - 220 mm
Outer Diameter (D) - 270 mm
Width (B1) - 14 mm
Dimension (Eb) - 226 mm
Dimension (Ea) - 262 mm
Dynamic Load Rating (C) - 248 kN
Static Load Rating (C0) - 1850 kN
Speed Rating with Oil - 1000 rpm
Weight - 1.6 kg
Compatible Needle Thrust Plate :
Needle Thrust Plate (Thick Series) - CP 8 220 270
Inner Ring (d) - 220 mm
Outer Ring (d1) - 268.3 mm
Width (h) - 8 mm
Weight - 1.1 kg
Description of Prefix :
AX - Needle thrust bearing
♦ ♦ Images are for representation purposes only
