AX 14 200 250 NADELLA

Brand - NADELLA
Item Number - AX 14 200 250 NADELLA
Category - Needle Thrust Bearing (Thick Series)

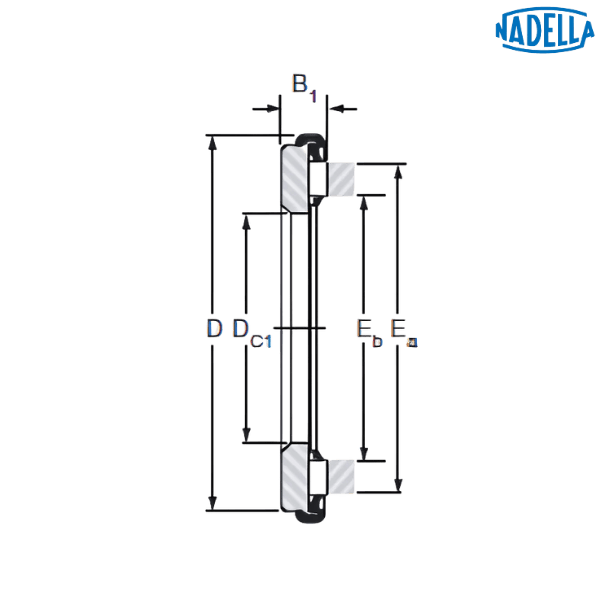

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 200 mm
Inner Diameter (DC1) - 200 mm
Outer Diameter (D) - 250 mm
Width (B1) - 14 mm
Dimension (Eb) - 206 mm
Dimension (Ea) - 242 mm
Dynamic Load Rating (C) - 239 kN
Static Load Rating (C0) - 1730 kN
Speed Rating with Oil - 1100 rpm
Weight - 1.5 kg

Compatible Needle Thrust Plate :
Needle Thrust Plate (Thick Series) - CP 8 200 250
Inner Ring (d) - 200 mm
Outer Ring (d1) - 248.3 mm
Width (h) - 8 mm
Weight - 1 kg

Description of Prefix :
AX - Needle thrust bearing

♦ ♦ Images are for representation purposes only
