AX 14 190 240 NADELLA

Brand - NADELLA
Item Number - AX 14 190 240 NADELLA
Category - Needle Thrust Bearing (Thick Series)

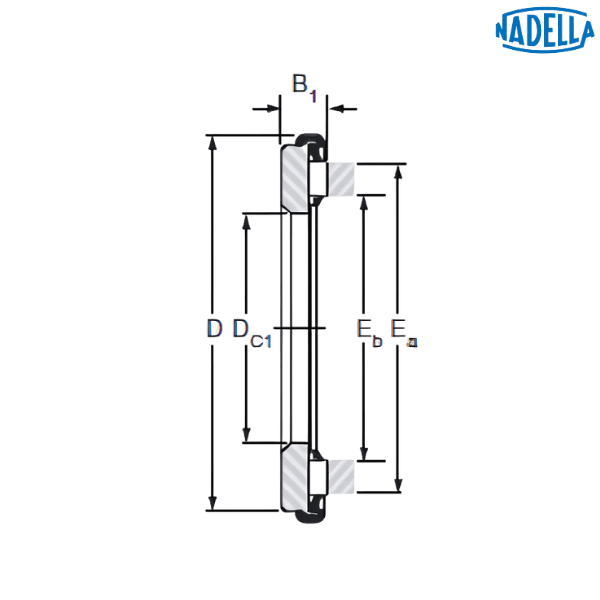

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 190 mm
Inner Diameter (DC1) - 190 mm
Outer Diameter (D) - 240 mm
Width (B1) - 14 mm
Dimension (Eb) - 196 mm
Dimension (Ea) - 232 mm
Dynamic Load Rating (C) - 230 kN
Static Load Rating (C0) - 1650 kN
Speed Rating with Oil - 1200 rpm
Weight - 1.4 kg

Compatible Needle Thrust Plate :
Needle Thrust Plate (Thick Series) - CP 8 190 240
Inner Ring (d) - 190 mm
Outer Ring (d1) - 238.3 mm
Width (h) - 8 mm
Weight - 0.95 kg

Description of Prefix :
AX - Needle thrust bearing
