AX 12 170 215 NADELLA

Brand - NADELLA
Item Number - AX 12 170 215 NADELLA
Category - Needle Thrust Bearing (Thick Series)

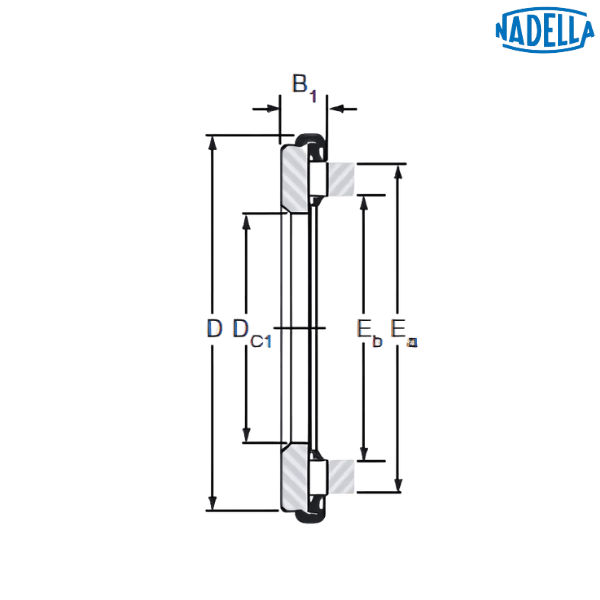

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 170 mm
Inner Diameter (DC1) - 170 mm
Outer Diameter (D) - 215 mm
Width (B1) - 12 mm
Dimension (Eb) - 175 mm
Dimension (Ea) - 207 mm
Dynamic Load Rating (C) - 165 kN
Static Load Rating (C0) - 1160 kN
Speed Rating with Oil - 1300 rpm
Weight - 1 kg

Compatible Needle Thrust Plate :
Needle Thrust Plate (Thick Series) - CP 7 170 215
Inner Ring (d) - 170 mm
Outer Ring (d1) - 213.5 mm
Width (h) - 7 mm
Weight - 0.7 kg

Description of Prefix :
AX - Needle thrust bearing
