AX 11 160 200 NADELLA

Brand - NADELLA
Item Number - AX 11 160 200 NADELLA

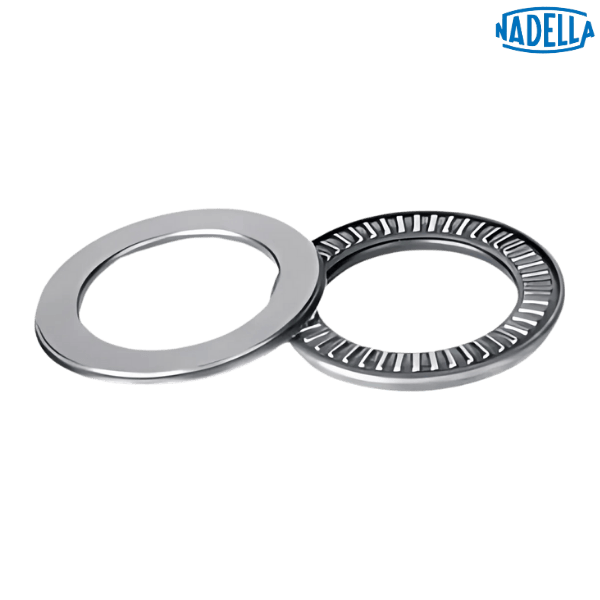

Category - Needle Thrust Bearing (Thick Series)

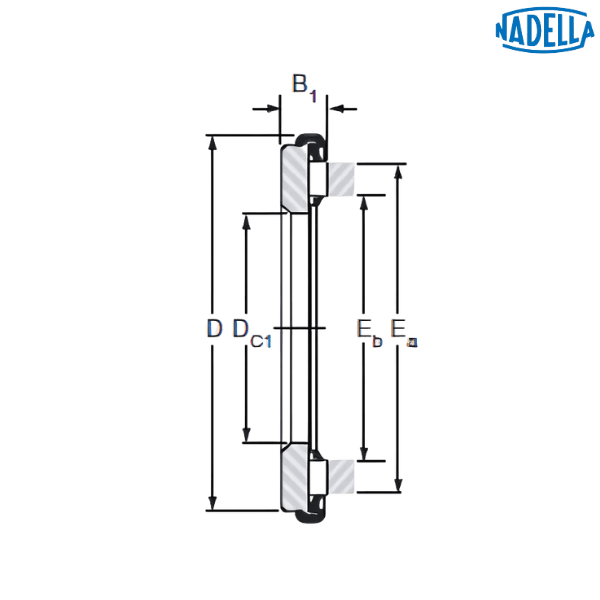

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 160 mm
Inner Diameter (DC1) - 160 mm
Outer Diameter (D) - 200 mm
Width (B1) - 11 mm
Dimension (Eb) - 165 mm
Dimension (Ea) - 191 mm
Dynamic Load Rating (C) - 118 kN
Static Load Rating (C0) - 870 kN
Speed Rating with Oil - 1400 rpm
Weight - 0.76 kg

Compatible Needle Thrust Plate :
Needle Thrust Plate (Thick Series) - CP 7 160 200
Inner Ring (d) - 160 mm
Outer Ring (d1) - 198.7 mm
Width (h) - 7 mm
Weight - 0.56 kg

Description of Prefix :
AX - Needle thrust bearing

♦ ♦ Images are for representation purposes only
