AX 11 140 180 NADELLA

Brand - NADELLA
Item Number - AX 11 140 180 NADELLA
Category - Needle Thrust Bearing (Thick Series)

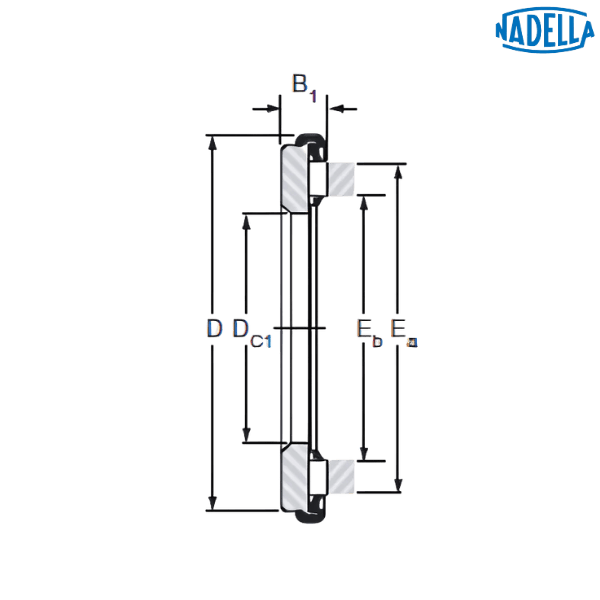

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 140 mm
Inner Diameter (DC1) - 140 mm
Outer Diameter (D) - 180 mm
Width (B1) - 11 mm
Dimension (Eb) - 145 mm
Dimension (Ea) - 171 mm
Dynamic Load Rating (C) - 111 kN
Static Load Rating (C0) - 770 kN
Speed Rating with Oil - 1600 rpm
Weight - 0.67 kg

Compatible Needle Thrust Plate :
Needle Thrust Plate (Thick Series) - CP 7 140 180
Inner Ring (d) - 140 mm
Outer Ring (d1) - 178.7 mm
Width (h) - 7 mm
Weight - 0.5 kg

Description of Prefix :
AX - Needle thrust bearing

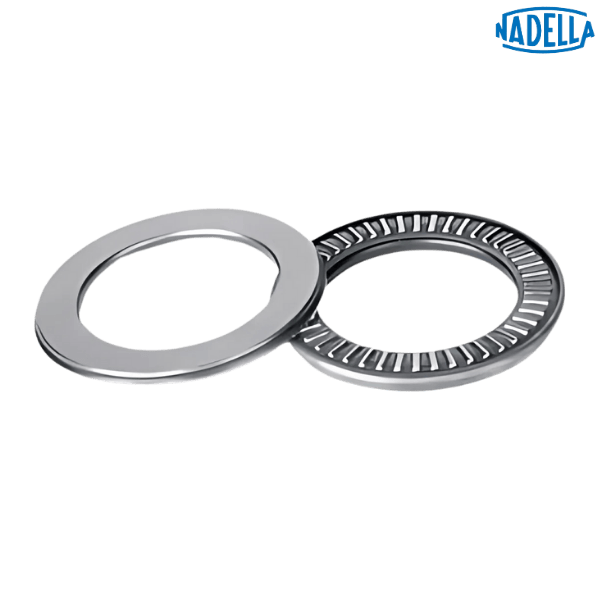

♦ ♦ Images are for representation purposes only
