AX 11 130 170 NADELLA

Brand - NADELLA
Item Number - AX 11 130 170 NADELLA

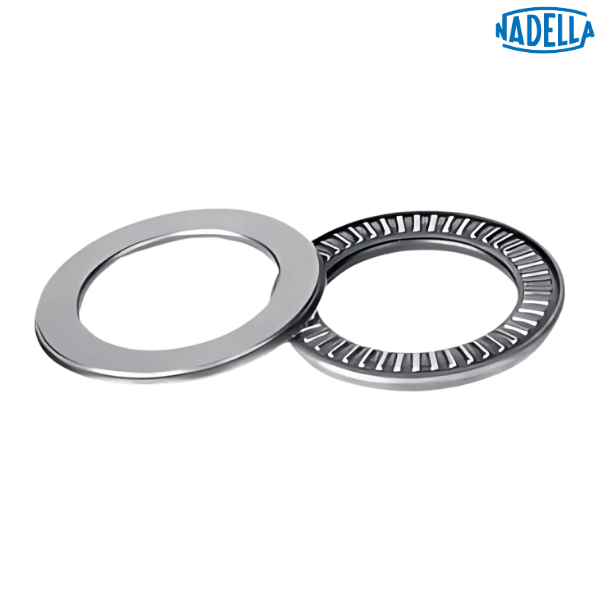

Category - Needle Thrust Bearing (Thick Series)

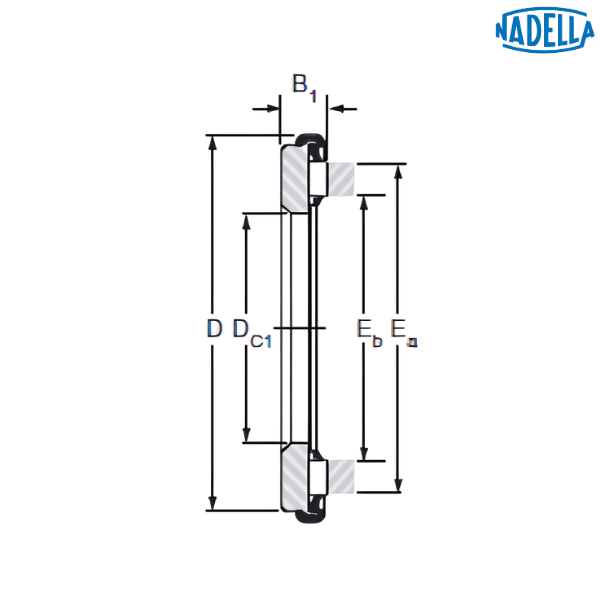

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 130 mm
Inner Diameter (DC1) - 130 mm
Outer Diameter (D) - 170 mm
Width (B1) - 11 mm
Dimension (Eb) - 135 mm
Dimension (Ea) - 161 mm
Dynamic Load Rating (C) - 106 kN
Static Load Rating (C0) - 710 kN
Speed Rating with Oil - 1700 rpm
Weight - 0.66 kg

Compatible Needle Thrust Plate :
Needle Thrust Plate (Thick Series) - CP 7 130 170
Inner Ring (d) - 130 mm
Outer Ring (d1) - 168.7 mm
Width (h) - 7 mm
Weight - 0.48 kg

Description of Prefix :
AX - Needle thrust bearing

♦ ♦ Images are for representation purposes only
