ARZ 7 17 30.4 NADELLA

Brand - NADELLA
Item Number - ARZ 7 17 30.4 NADELLA
Category - Roller Thrust Bearing with Thrust Plate (Light Series)

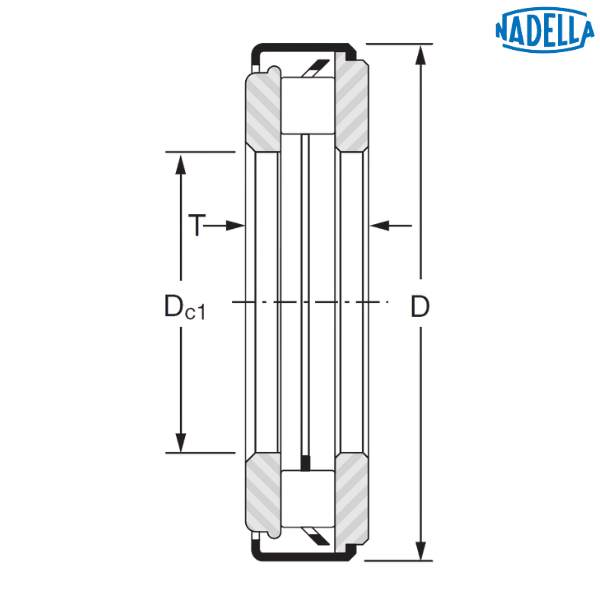

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 17 mm
Inner Diameter (d) - 17 mm
Outer Diameter (D) - 30.4 mm
Width (T) - 7 mm
Dynamic Load Rating (C) - 15 kN
Static Load Rating (C0) - 39 kN
Speed Limit with Oil - 10500 rpm
Weight - 0.022 kg

Description of Prefix :
ARZ - Roller thrust bearing with retained plate

♦ ♦ Images are for representation purposes only
