ARZ 6.5 10 22.4 NADELLA

Brand - NADELLA
Item Number - ARZ 6.5 10 22.4 NADELLA
Category - Roller Thrust Bearing with Thrust Plate (Light Series)

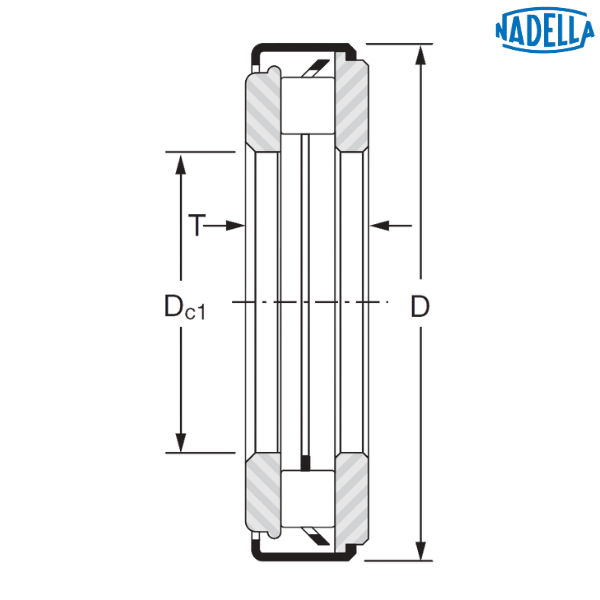

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 10 mm
Inner Diameter (d) - 10 mm
Outer Diameter (D) - 22.4 mm
Width (T) - 6.5 mm
Dynamic Load Rating (C) - 8.2 kN
Static Load Rating (C0) - 17.9 kN
Speed Limit with Oil - 15500 rpm
Weight - 0.012 kg

Description of Prefix :
ARZ - Roller thrust bearing with retained plate

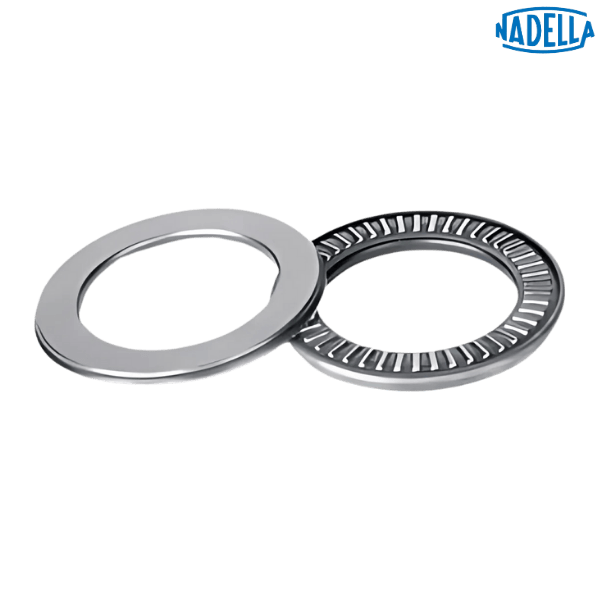

♦ ♦ Images are for representation purposes only
