Description
Brand - NADELLA
Item Number - ARZ 14 80 106 NADELLA
Category - Roller Thrust Bearing with Thrust Plate (Light Series)
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 80 mm
Inner Diameter (d) - 80 mm
Outer Diameter (D) - 106 mm
Width (T) - 14 mm
Dynamic Load Rating (C) - 82 kN
Static Load Rating (C0) - 330 kN
Speed Limit with Oil - 2700 rpm
Weight - 0.312 kg
Description of Prefix :
ARZ - Roller thrust bearing with retained plate

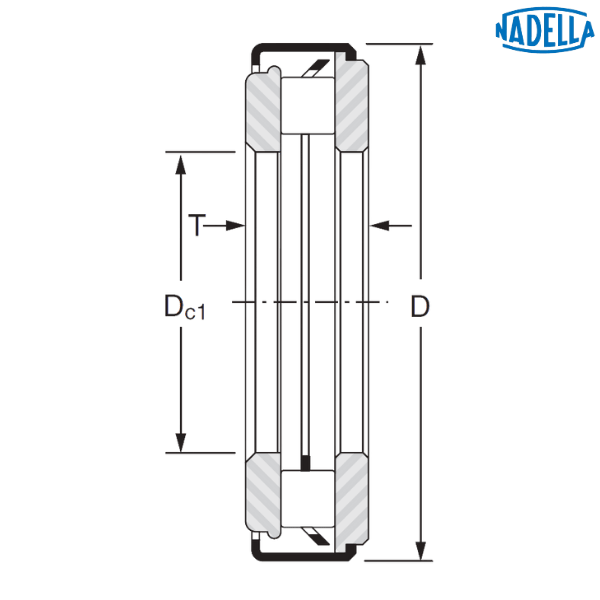

♦ ♦ Images are for representation purposes only
