Description
Brand - NADELLA
Item Number - ARZ 14 70 96 NADELLA

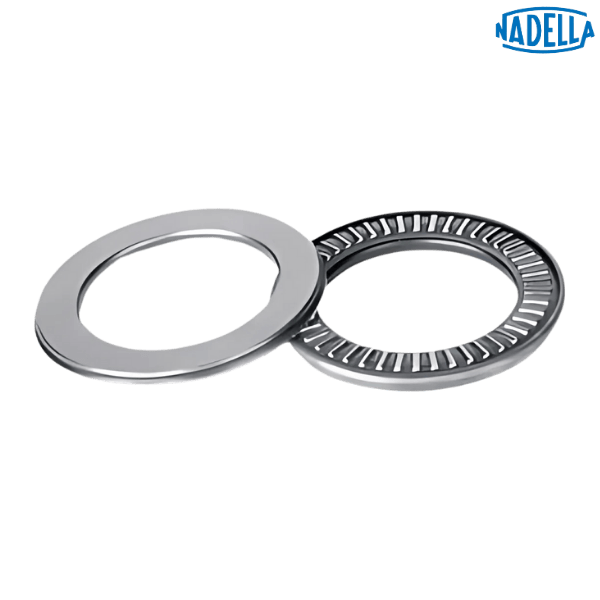

Category - Roller Thrust Bearing with Thrust Plate (Light Series)

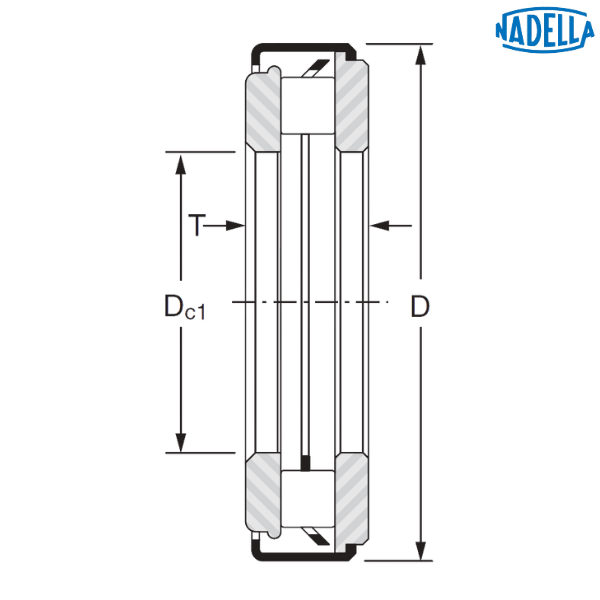

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 70 mm
Inner Diameter (d) - 70 mm
Outer Diameter (D) - 96 mm
Width (T) - 14 mm
Dynamic Load Rating (C) - 77 kN
Static Load Rating (C0) - 295 kN
Speed Limit with Oil - 3000 rpm
Weight - 0.279 kg
Description of Prefix :
ARZ - Roller thrust bearing with retained plate
♦ ♦ Images are for representation purposes only
