Description
Brand - NADELLA
Item Number - ARZ 14 60 86 NADELLA
Category - Roller Thrust Bearing with Thrust Plate (Light Series)

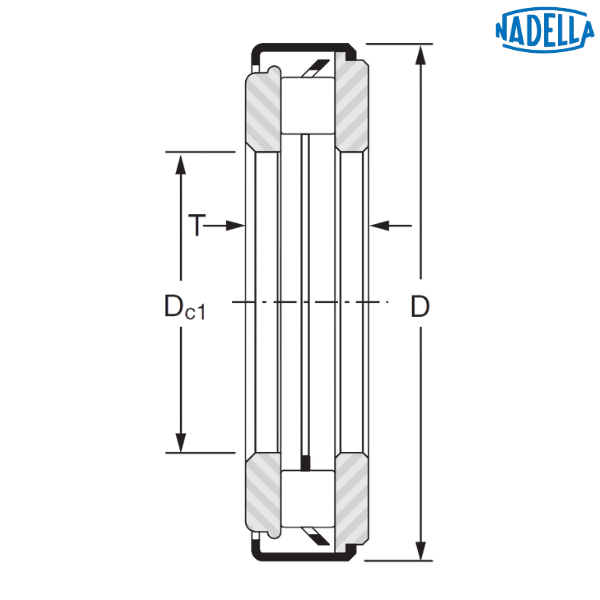

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 60 mm
Inner Diameter (d) - 60 mm
Outer Diameter (D) - 86 mm
Width (T) - 14 mm
Dynamic Load Rating (C) - 71 kN
Static Load Rating (C0) - 255 kN
Speed Limit with Oil - 3500 rpm
Weight - 0.246 kg
Description of Prefix :
ARZ - Roller thrust bearing with retained plate
♦ ♦ Images are for representation purposes only
