ARZ 12 40 61 NADELLA

Brand - NADELLA
Item Number - ARZ 12 40 61 NADELLA
Category - Roller Thrust Bearing with Thrust Plate (Light Series)

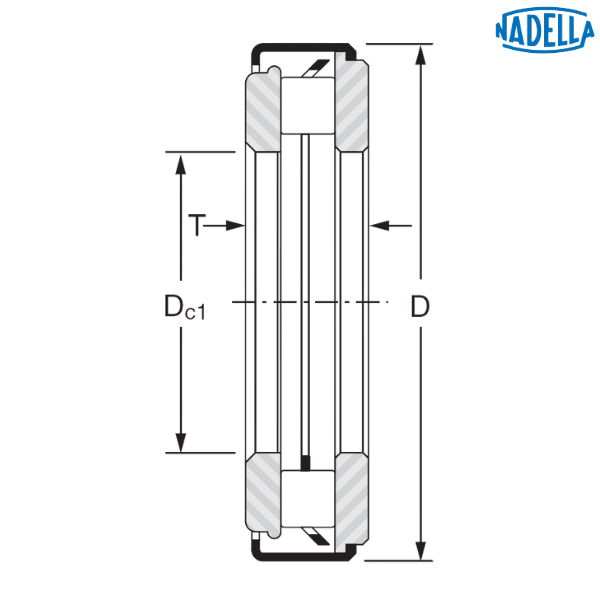

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 40 mm
Inner Diameter (d) - 40 mm
Outer Diameter (D) - 61 mm
Width (T) - 12 mm
Dynamic Load Rating (C) - 46 kN
Static Load Rating (C0) - 129 kN
Speed Limit with Oil - 5000 rpm
Weight - 0.114 kg

Description of Prefix :
ARZ - Roller thrust bearing with retained plate
