Description
Brand - NADELLA
Item Number - ARZ 11 35 54 NADELLA

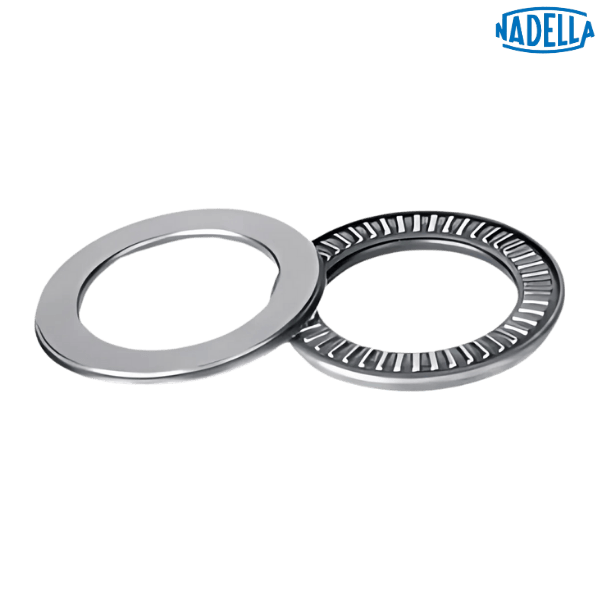

Category - Roller Thrust Bearing with Thrust Plate (Light Series)

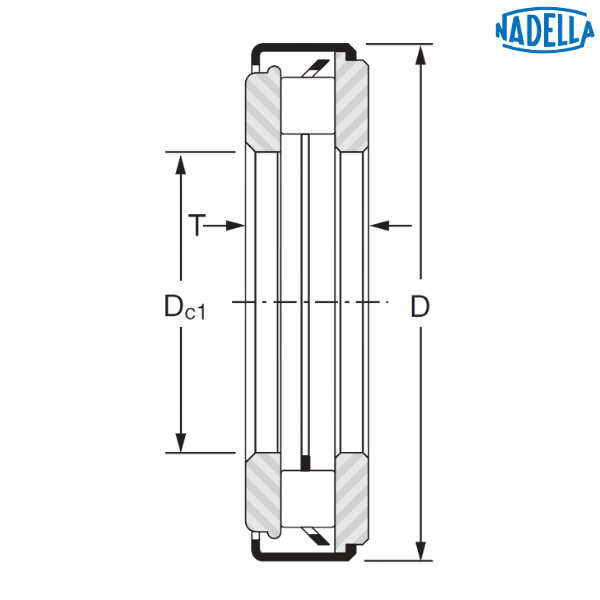

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 35 mm
Inner Diameter (d) - 35 mm
Outer Diameter (D) - 54 mm
Width (T) - 11 mm
Dynamic Load Rating (C) - 33.8 kN
Static Load Rating (C0) - 94 kN
Speed Limit with Oil - 5500 rpm
Weight - 0.087 kg
Description of Prefix :
ARZ - Roller thrust bearing with retained plate
