Description
Brand - NADELLA
Item Number - ARZ 10 30 48 NADELLA
Category - Roller Thrust Bearing with Thrust Plate (Light Series)

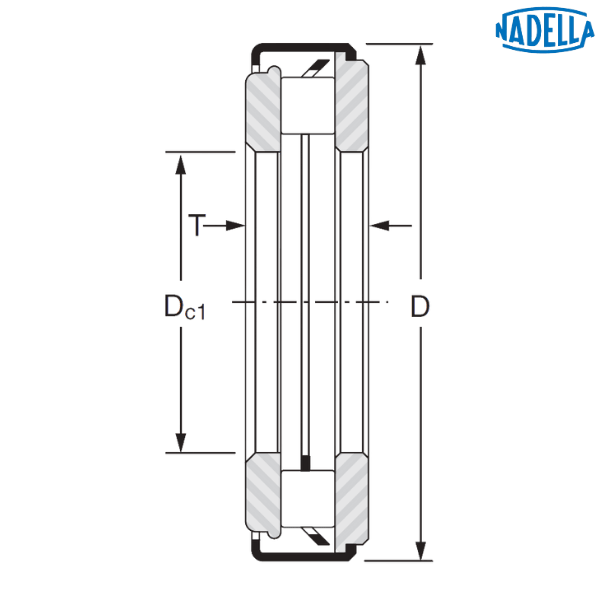

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 30 mm
Inner Diameter (d) - 30 mm
Outer Diameter (D) - 48 mm
Width (T) - 10 mm
Dynamic Load Rating (C) - 26.5 kN
Static Load Rating (C0) - 77 kN
Speed Limit with Oil - 6500 rpm
Weight - 0.065 kg
Description of Prefix :
ARZ - Roller thrust bearing with retained plate
♦ ♦ Images are for representation purposes only
