ARZ 10 30 43 NADELLA

Brand - NADELLA
Item Number - ARZ 10 30 43 NADELLA
Category - Roller Thrust Bearing with Thrust Plate (Light Series)

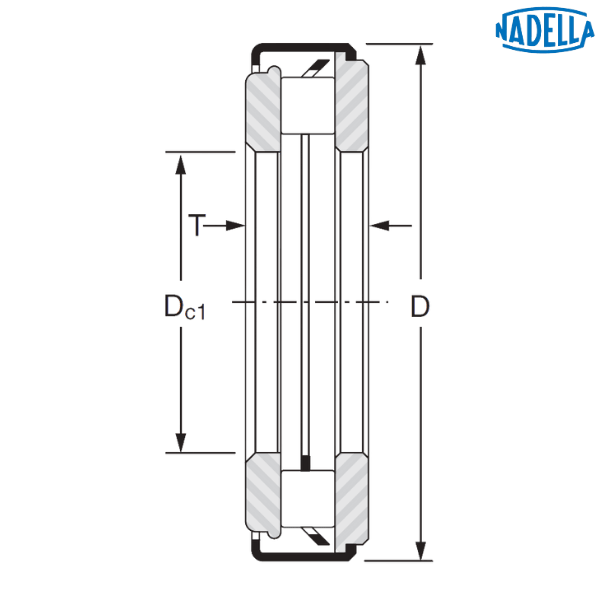

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 25 mm
Inner Diameter (d) - 25 mm
Outer Diameter (D) - 43 mm
Width (T) - 10 mm
Dynamic Load Rating (C) - 25.5 kN
Static Load Rating (C0) - 70 kN
Speed Limit with Oil - 7500 rpm
Weight - 0.057 kg

Description of Prefix :
ARZ - Roller thrust bearing with retained plate
