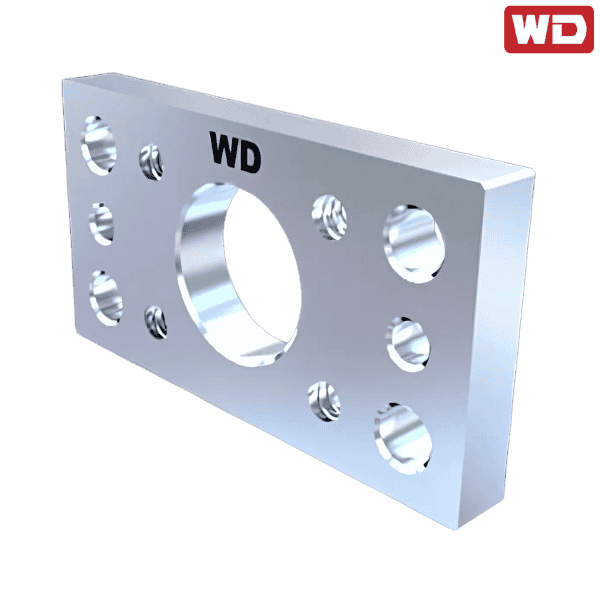

APS WD

Brand - WD
Item Number - APS WD
Category - Flange Plate

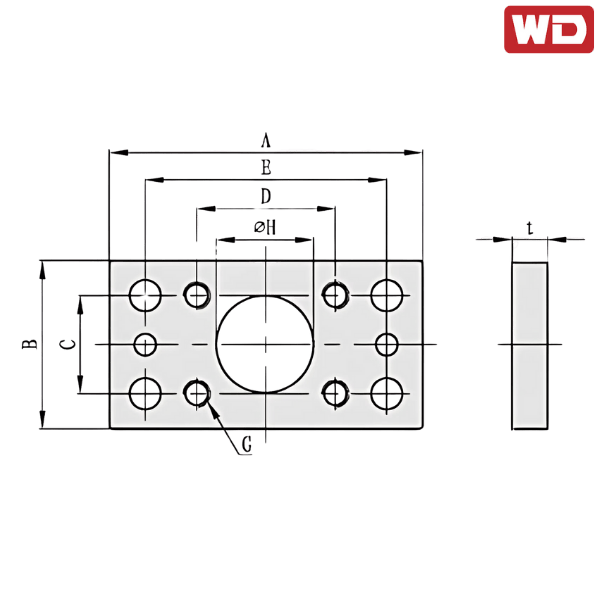

Principal Dimensions & Load Ratings (Metric):
Dimension (A) - 90 mm
Overall Bearing Width - 50 mm
Dimension (C) - 30 mm
Outside Diameter - 40 mm
Dimension (E) - 70 mm
Dimension (F) - 8.5 mm
Dimension (G) - M8
Dimension (H) - 30 mm
Dimension (t) - 10 mm
Type - A
Applicable Products - WD053
Reference Code in Germany - APS
Reference Code in Italy - 8.0288

♦ ♦ Images are for representation purposes only
