AP93-Q WD

Brand - WD
Item Number - AP93-Q WD
Category - Flange Plate

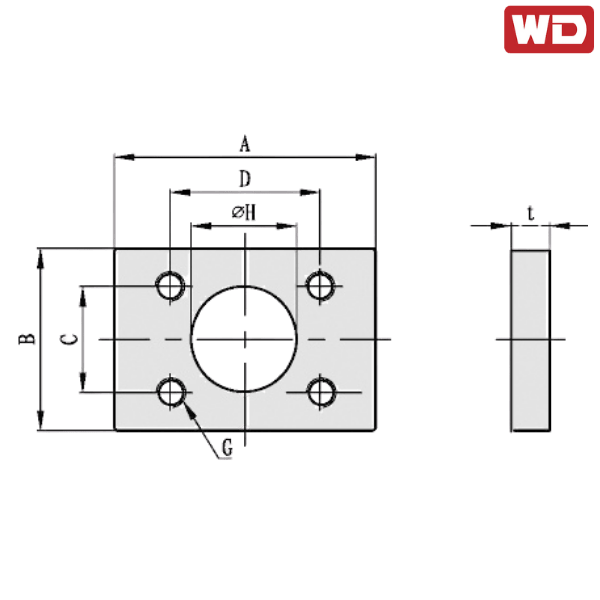

Principal Dimensions & Load Ratings (Metric):
Dimension (A) - 280 mm
Overall Bearing Width - 280 mm
Dimension (C) - 220 mm
Outside Diameter - 220 mm
Dimension (G) - M30
Dimension (H) - 150 mm
Dimension (t) - 37 mm
Type - B
Applicable Products - WD093
Reference Code in Germany - AP93-Q

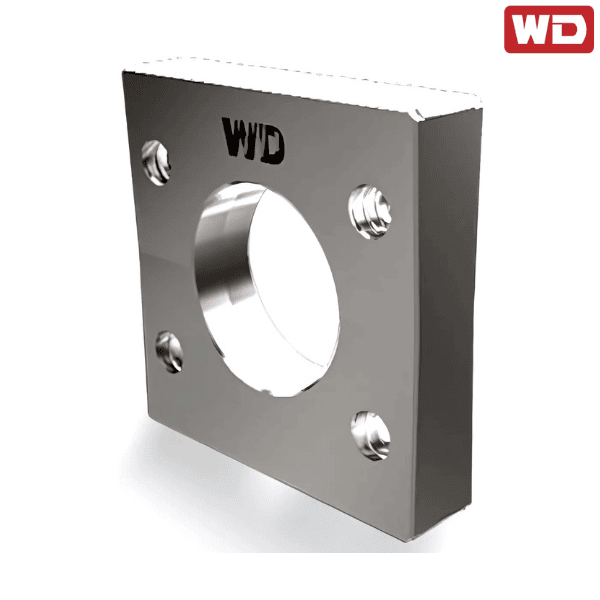

♦ ♦ Images are for representation purposes only
