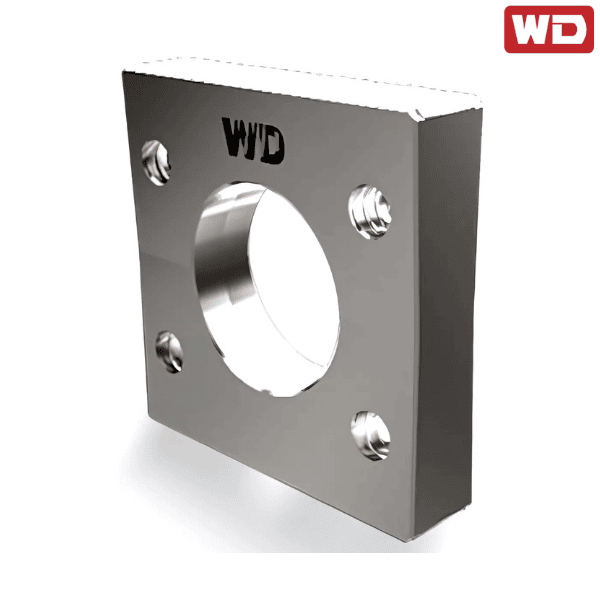

AP92-Q WD

Brand - WD
Item Number - AP92-Q WD
Category - Flange Plate

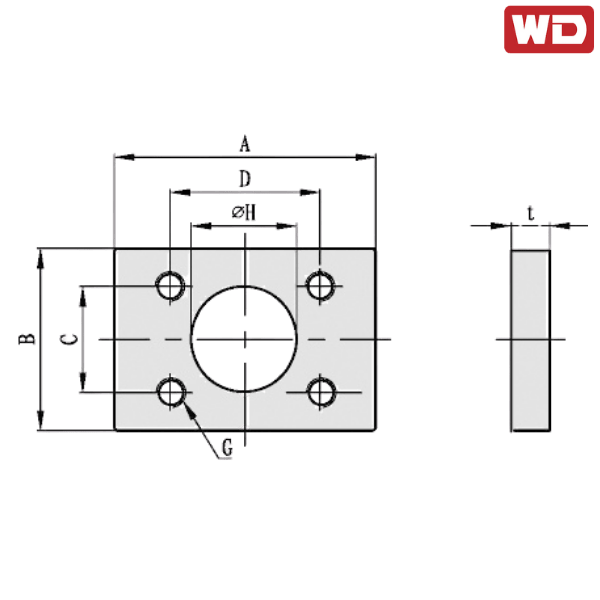

Principal Dimensions & Load Ratings (Metric):
Dimension (A) - 250 mm
Overall Bearing Width - 250 mm
Dimension (C) - 206 mm
Outside Diameter - 206 mm
Dimension (G) - M24
Dimension (H) - 120 mm
Dimension (t) - 37 mm
Type - B
Applicable Products - WD092
Reference Code in Germany - AP92-Q

♦ ♦ Images are for representation purposes only
