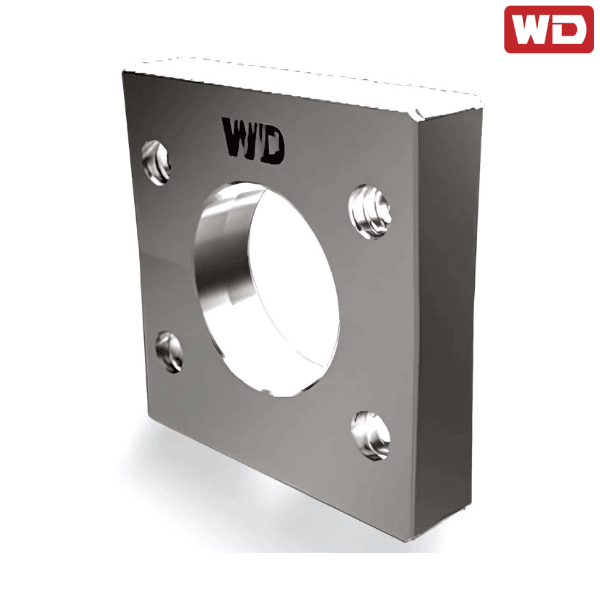

AP91-Q WD

Brand - WD
Item Number - AP91-Q WD
Category - Flange Plate

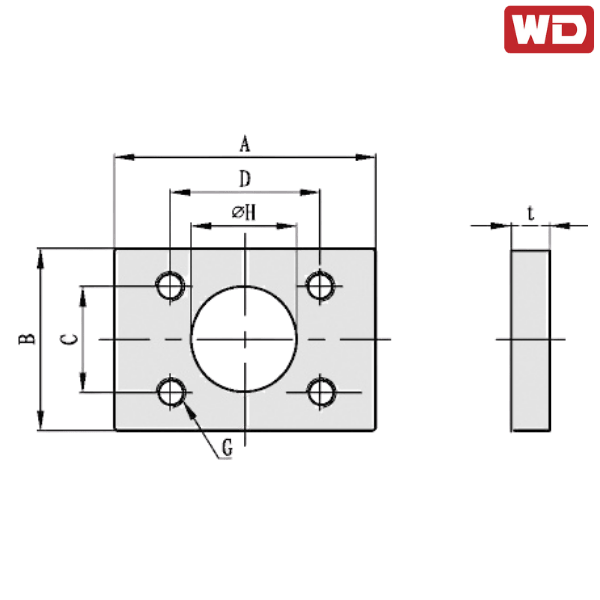

Principal Dimensions & Load Ratings (Metric):
Dimension (A) - 220 mm
Overall Bearing Width - 220 mm
Dimension (C) - 176 mm
Outside Diameter - 176 mm
Dimension (G) - M24
Dimension (H) - 110 mm
Dimension (t) - 33 mm
Type - B
Applicable Products - WD091
Reference Code in Germany - AP91-Q

♦ ♦ Images are for representation purposes only
