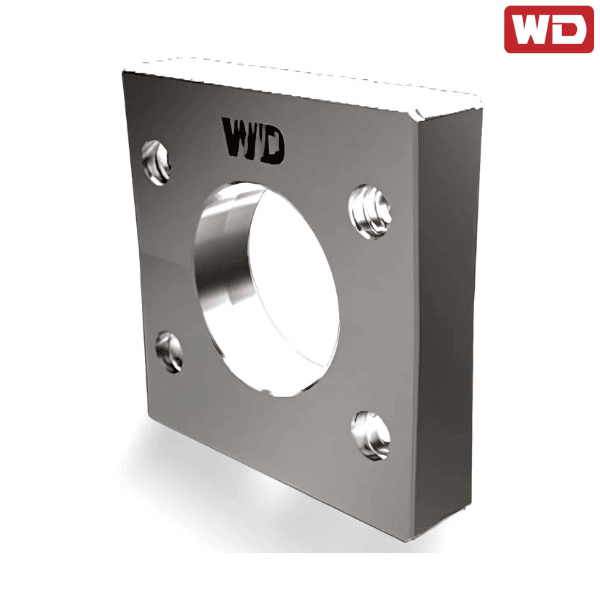

AP90-Q WD

Brand - WD
Item Number - AP90-Q WD
Category - Flange Plate

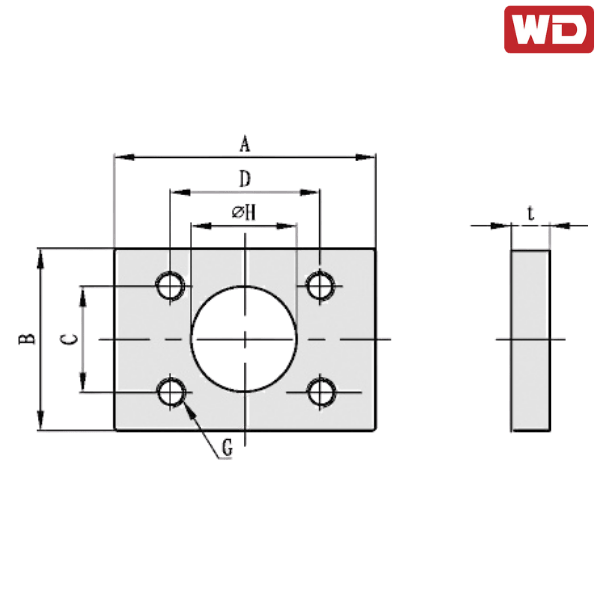

Principal Dimensions & Load Ratings (Metric):
Dimension (A) - 190 mm
Overall Bearing Width - 190 mm
Dimension (C) - 150 mm
Outside Diameter - 150 mm
Dimension (G) - M20
Dimension (H) - 100 mm
Dimension (t) - 28 mm
Type - B
Applicable Products - WD090
Reference Code in Germany - AP90-Q

♦ ♦ Images are for representation purposes only
