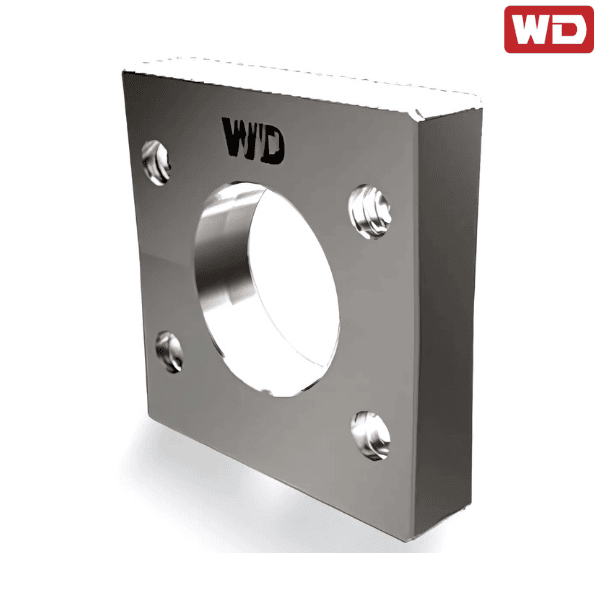

AP89-Q WD

Brand - WD
Item Number - AP89-Q WD
Category - Flange Plate

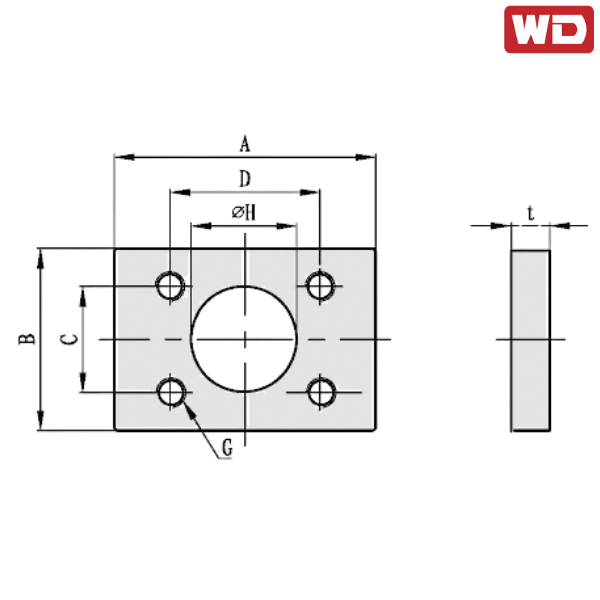

Principal Dimensions & Load Ratings (Metric):
Dimension (A) - 165 mm
Overall Bearing Width - 165 mm
Dimension (C) - 125 mm
Outside Diameter - 125 mm
Dimension (G) - M20
Dimension (H) - 80 mm
Dimension (t) - 23 mm
Type - B
Applicable Products - WD089
Reference Code in Germany - AP89-Q

♦ ♦ Images are for representation purposes only
