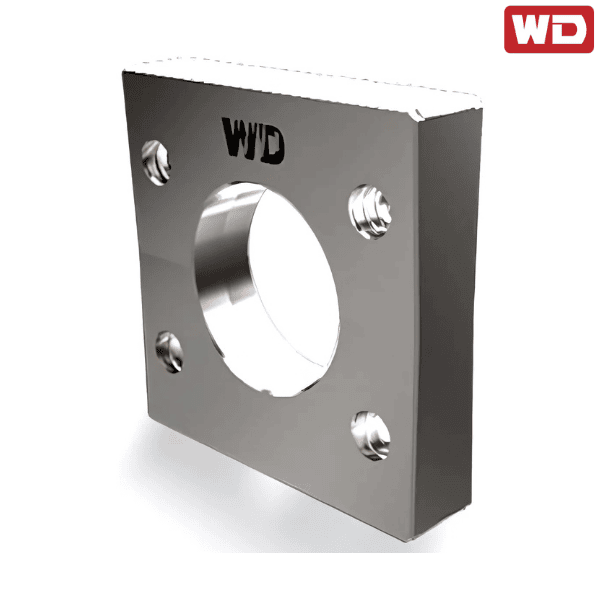

AP4-Q WD

Brand - WD
Item Number - AP4-Q WD
Category - Flange Plate

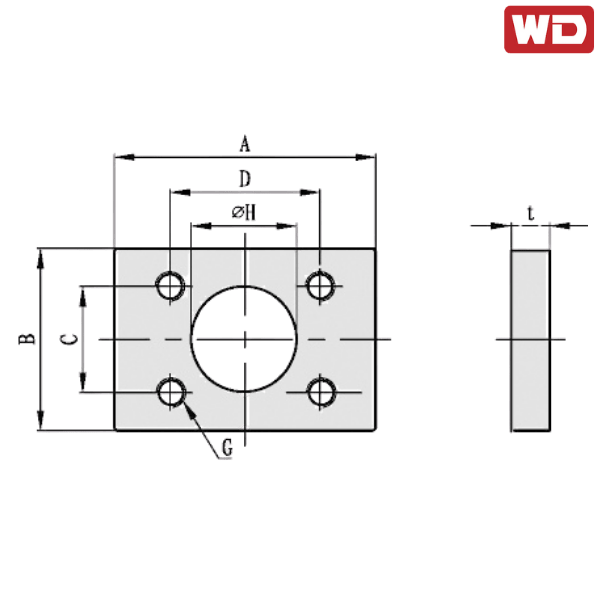

Principal Dimensions & Load Ratings (Metric):
Dimension (A) - 120 mm
Overall Bearing Width - 120 mm
Dimension (C) - 80 mm
Outside Diameter - 80 mm
Dimension (G) - M16
Dimension (H) - 60 mm
Dimension (t) - 20 mm
Type - B
Applicable Products - WD061
Reference Code in Germany - AP4-Q

♦ ♦ Images are for representation purposes only
