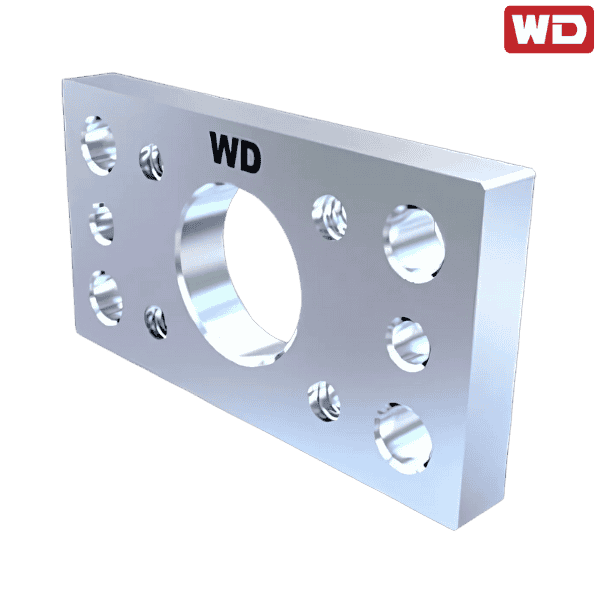

AP2 WD

Brand - WD
Item Number - AP2 WD
Category - Flange Plate

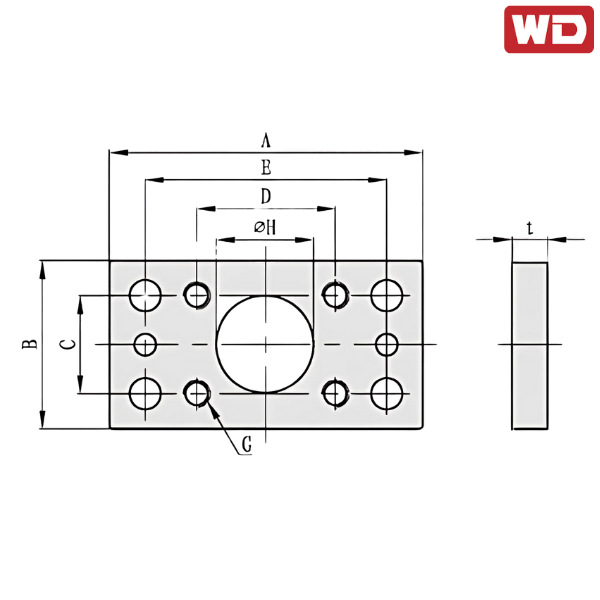

Principal Dimensions & Load Ratings (Metric):
Dimension (A) - 120 mm
Overall Bearing Width - 80 mm
Dimension (C) - 50 mm
Outside Diameter - 50 mm
Dimension (E) - 90 mm
Dimension (F) - 12.5 mm
Dimension (G) - M12
Dimension (H) - 40 mm
Dimension (t) - 15 mm
Type - A
Applicable Products - WD056, WD074
Reference Code in Germany - AP2
Reference Code in Italy - 8.0278

♦ ♦ Images are for representation purposes only
