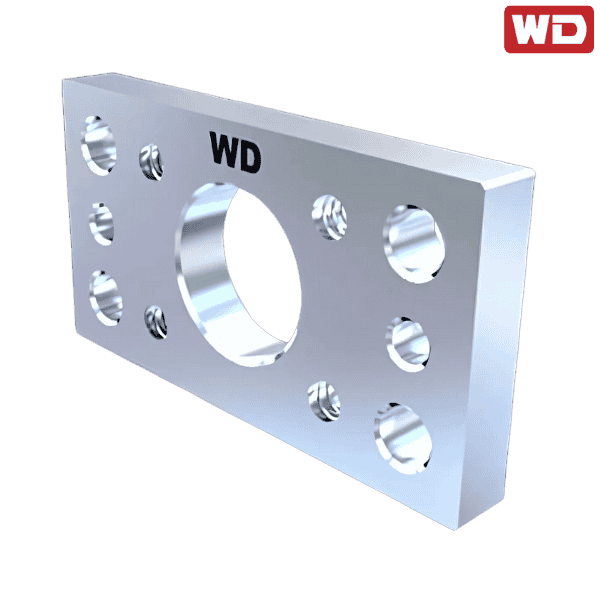

AP1 WD

Brand - WD
Item Number - AP1 WD
Category - Flange Plate

Principal Dimensions & Load Ratings (Metric):
Dimension (A) - 120 mm
Overall Bearing Width - 80 mm
Dimension (C) - 50 mm
Outside Diameter - 50 mm
Dimension (E) - 90 mm
Dimension (F) - 12.5 mm
Dimension (G) - M12
Dimension (H) - 35 mm
Dimension (t) - 15 mm
Type - A
Applicable Products - WD055, WD073
Reference Code in Germany - AP1
Reference Code in Italy - 8.0277
