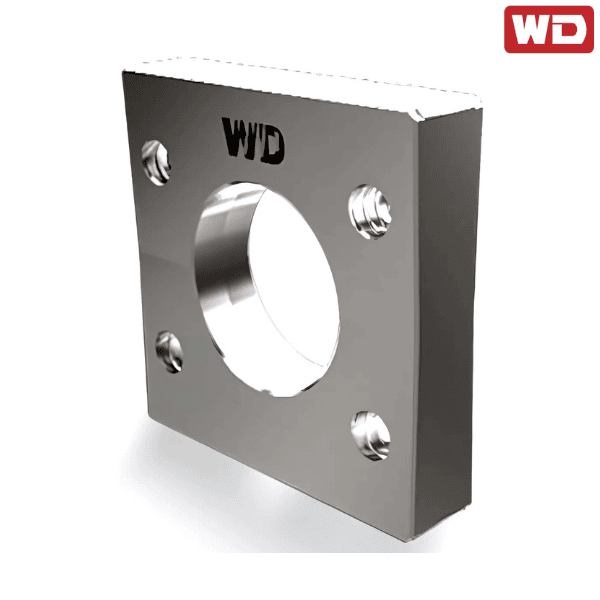

AP1-Q WD

Brand - WD
Item Number - AP1-Q WD
Category - Flange Plate

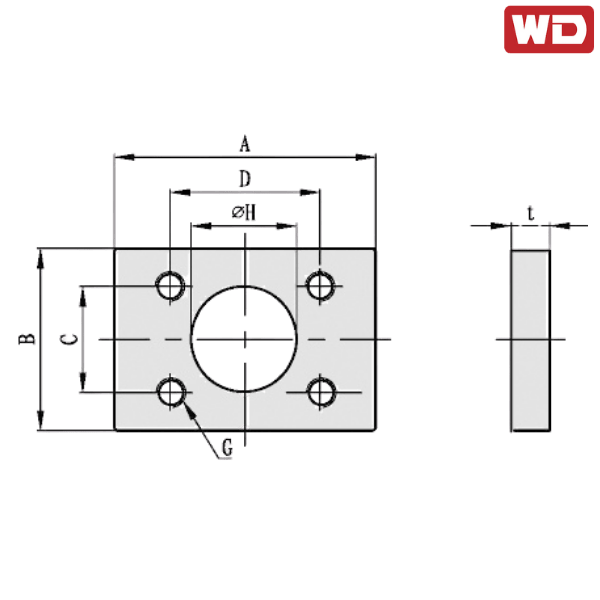

Principal Dimensions & Load Ratings (Metric):
Dimension (A) - 80 mm
Overall Bearing Width - 80 mm
Dimension (C) - 50 mm
Outside Diameter - 50 mm
Dimension (G) - M12
Dimension (H) - 35 mm
Dimension (t) - 15 mm
Type - B
Applicable Products - WD055
Reference Code in Germany - AP1-Q

♦ ♦ Images are for representation purposes only
